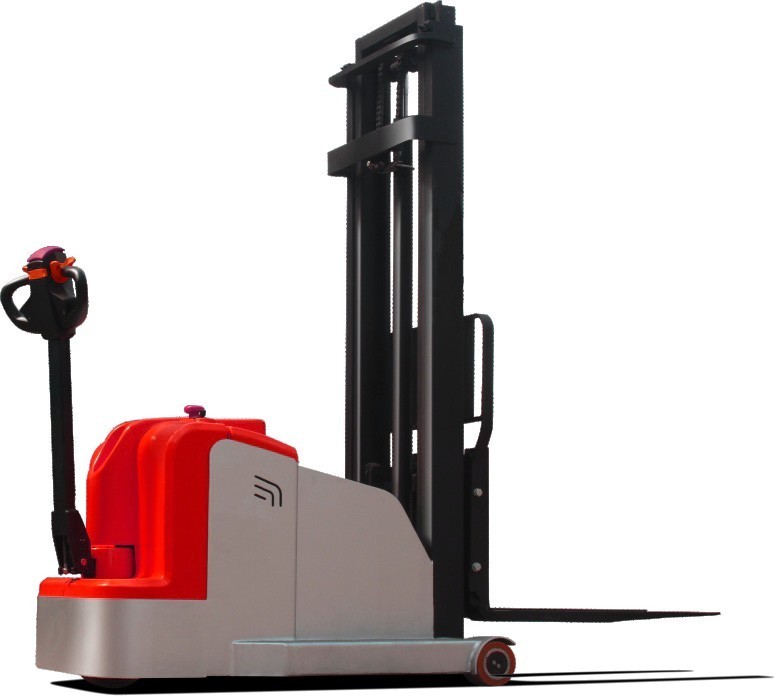

Electric Pallet Stacker (Walkie CounterbalanceType) CPDW
Electric Pallet Stacker (Walkie CounterbalanceType) CPDW
Electric Pallet Stacker (Walkie CounterbalanceType) CPDW
Electric Pallet Stacker (Walkie CounterbalanceType) CPDW

Electric Pallet Stacker (Walkie CounterbalanceType) CPDW

Compared to the same kind products in market , it owns smaller turning radius and aisles
INQUIRY
  • Description
  • Inquiry

Product Description

Compared  to  the  same  kind products  in  market ,  it owns smaller turning  radius  and  aisles,  larger  load center distance (500mm), outstanding in performance;
 Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;
 Free-maintenance  battery(Li-ion  optional) .  No  need to add liquids . It is easy to maintain, saving the energy. Build-in motor. Easy charging by only open the cover;
 Excellent layout structure, Easy parts assembly or disa- ssem bly, easy for maintenance

Characteristics
1.1
Model

CPDW09
CPDW10
CPDW12
1.4
Power (electricity, diesel, petrol, LPG, manual)

Electric
Electric
Electric
1.5
Operation (manual, walkie, side-standing, order picker)

Walkie
Walkie
Walkie
1.6
Rated load capacity
Q(Kg)
900
1000
1200
1.7
Load center distance
C(mm)
500
500
500
1.8
The front overhang distance
X(mm)
71
71
85
1.9
Wheelbase
Y(mm)
1070
1340
1312
Weight
2.1
Self weight with battery
kg
1290
1320
1480
Wheel, chassis
3.1
Wheel type (the front/the rear)

PU/PU
PU/PU
PU/PU
3.2
The front wheel specification
∅×w(mm)
Φ140x100
Φ140x100
Φ210x85
3.3
The rear wheel specification
∅×w(mm)
Φ210x70
Φ210x70
Φ250x80
3.4
The front track width
b2(mm)
816
816
801
Dimensions
4.1
Mast closed height
H1(mm)
2065
2065
2115
4.2
Free lifting height
h2(mm)
0
0
0
4.3
Lifting height
H(mm)
3000
3000
3000
4.4
Maximum mast lifting height (load backrest included)
H2(mm)
3913
3913
3913
4.6
Forks height when mast retracted
H3(mm)
35
35
35
4.9
Overall vehicle length (forks excluded/included)
L(mm)
1380/2301
1652/2573
1684/2612
4.10
Overall vehicle width
b1(mm)
916
916
886
4.11
Forks dimensions
s/e/l(mm)
920*100*35
920*100*35
1070*100*35
4.12
Forks aadjustment dimensions (outer width)
b5(mm)
200-580
200-580
200-580
4.13
Minimum ground clearance (wheelbase center)
m2(mm)
40
40
72
4.14
Stacking aisle width， pallet1000×1200 (1200 placed cross forks)
Ast(mm)
2720
2956
2846
4.15
Stacking aisle width， pallet1000×1200 (1200 placed along the forks)
Ast(mm)
2859
3094
3083
4.16
Minimum turning radius
Wa(mm)
1257
1528
1480
Performance
5.1
Travel speed, full loaded/loaded
km/h
4.0/3.5
4.0/3.5
4.0/3.5
5.2
Lifting speed, full loaded/loaded
m/s
0.215/0.145
0.215/0.130
0.215/0.130
5.3
Lowering speed, full loaded/loaded
m/s
0.105/0.125
0.105/0.130
0.105/0.130
5.8
Maximum gradeability, full loaded/loaded
％
5.0/4.5
5.0/4.0
5.0/4.0
5.1
Service brake

Electromagnetic
Electromagnetic
Electromagnetic
Motor
6.1
Drive motor power
kw
0.75
0.75
1.5
6.2
Lifting motor power
kw
2.2
2.2
2.2
6.3
Battery type

Lead acid
Lead acid
Lead acid gel battery
6.4
Battery voltage/capacity
V/Ah
24/100
24/100
24/150
6.5
Battery charger
v/A
24V/10A
24V/10A
24/20A
Other
7.1
Drive control mode

DC
DC
AC
7.4
Driver's ear noise level according to EN12053
dB(A)
70
70
70
