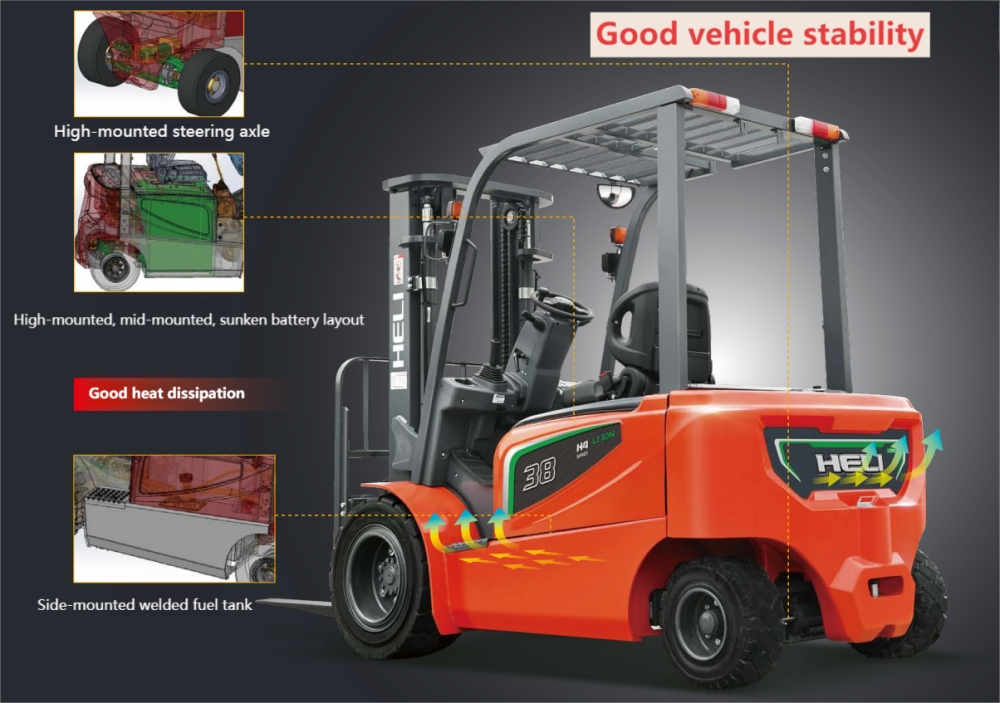

The pump/pump motor is located on the upper left side of the vehicle body (2-3.8t), and the electronic control is located on the counterweight, making maintenance easy.
High reliability High security Long service life
Model
CPD15
CPD18
CPD15
CPD18
CPD15
CPD18
CPD15
CPD18
CPD20
Configuration Number
A3LiH4-H
A5LiH4-H
A3LiH4-M/
A5LiH4-M
A3LiPH4-M/
/A5LiPH4-M
A7Li
H4-S
A7XLiH4-S
Rated Capacity Q/kg
1500
1800
1500
1800
1500
1800
1500
1800
2000
Load Center Distance C/mm
500
Powertrain
Lithium
Drive
Seated Type
Front Overhang X/mm
409
414
Wheelbase y/mm
1475
Weight
Gross Weight (with/without Battery) kg
2900/2690
3015/2805
2855/2680
2970/2795
2935/2780
3050/2875
2835/2670
2950/2785
3100/2925
Axle Load (Loaded, Front/Rear) kg
3731/669
4215/600
3719/636
4203/567
3813/622
4232/618
3711/624
4196/555
4547/553
Axle Load (Unloaded, Front/Rear) kg
1305/1595
1304/1711
1294/1561
1293/1677
1388/1547
1321/1729
1287/1548
1286/1664
1308/1792
Tires
Tire Type
Pneumatic Tire
Tire Size, Front
6.50-10-10PR
6.50-10-12PR
Tire Size, Rear
16×6-8-10PR
Number of Wheels, Front/Rear (x = Drive Wheels)
2/2
Front Track b10/mm
934
Rear Track b11/mm
920
Dimensions
Mast tilt (forward/backward) a/β/°
6/8
Mast height (forks in place, mast vertical) h1/mm
1995
Free lift h2/mm
155
Lift height (standard) h3/mm
3000
Maximum operating height (with backrest) h4/mm
4014
Overhead guard height h6/mm
2130
Seat seat height (to ground) h7/mm
1125
Drawbar height h10/mm
250
Overall length (with forks) l1/mm
3120
3125
Overall length (without forks) l2/mm
2200
2205
Body width/wheel width b1/mm
1120
Fork carriage, ISO 2328 standard
2A
Fork dimensions: depth x width x length s/e/l/mm
35×100×920
40×100×920
Fork spacing, maximum/minimum b5/mm
960/200
Ground clearance (fully loaded, at mast) m1/mm
100
Ground clearance (fully loaded, at center of wheelbase) m1/mm
95
Right-angle stacking aisle width, pallet 1000x1200 (1200 across forks) Ast/mm
3575
3580
Right-angle stacking aisle width, pallet 800x1200 (1200 along forks) Ast/mm
3770
3775
Outside turning radius Wa/mm
1920
Performance
Travel Speed (Loaded/Unloaded) km/h
17.5/18
14.5/15
14.5/15
12/13
Lifting Speed (Loaded/Unloaded) m/s
0.400/0.520 0.380/0.520
0.320/0.440|0.290/0.440
0.320/0.4400.290/0.440
0.290/0.4000.270/0.400|0.260/0.400
Lowering Speed (Loaded/Unloaded) m/s
0.400/0.400
Maximum Traction Force (Loaded/Unloaded) N
12000/10800
12000/11000
10200/9700
10200/9800
10200/9700
10200/9800
10200/9700
10200/9800
11000/10700
Maximum Gradeability (Loaded/Unloaded) %
20/27
18/26
17/27
15/26
17/27
15/26
15/23
15/22
15/25
Acceleration Time (10 meters) (Loaded/Unloaded) S
5.5/5.2
5.6/5.3
5.5/5.2
5.6/5.3
5.5/5.2
5.6/5.3
6.0/5.7
6.1/5.8
5.6/5.2
Battery
Lithium Battery Voltage/Capacity V/Ah
80/202
80/150
80/150
80/125
80/150
Lithium Battery Weight kg
210
175
175
165
175
Motor and Controller
Drive Motor Power (S2-60 min) kW
11
8
Lifting Motor Power (S3-15%) kW
14
10.6
Drive Motor Control Method
MOS tube/AC
Lifting Motor Control Method
MOS tube/AC
Other
Service Brake/Parking Brake
Hydraulic/Mechanical
Attachment Operating Pressure Mpa
16
FAQ
Q:What is theMOQ? A: One set.
Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase? A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q:How long is the warranty time? A: 12 months or 2000 hours whichever comes first.
Q:What is the payment terms? A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
