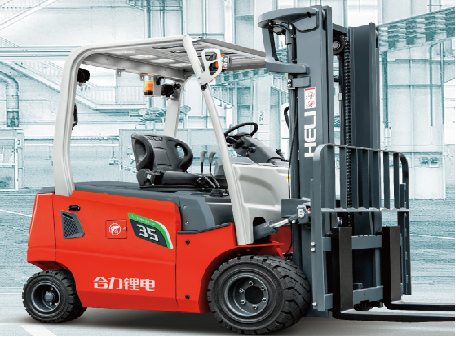

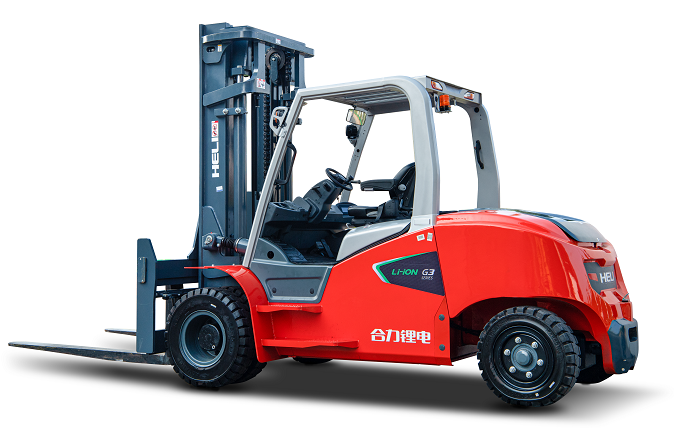

Heli G3 Series Forklifts 4Ton5ton Lithium Battery Forklift With Origin Factory Price New Models CPD50

Heli G3 Series Rear Drive Seat Electric Forklift CPD50 Lithium Battery Forklift with Fork Positioner

INQUIRY

Description
Inquiry

Product Description

Improved human-machine comfort High efficiency and energy saving

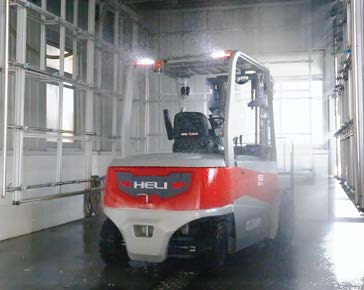

Suitable for high and low temperature work High security

The integrated powertrain reduces wiring and significantly reduces power transmission losses.

The components and control module are clearly structured for easy maintenance.

Centralized maintenance Fast and convenient

①The hood opens 80° with a simple opening mechanism and an optional key lock for easy maintenance.

②The vehicle's optimized structural layout provides ample interior space and easy maintenance.

③The modular design of the powertrain and electrical system facilitates maintenance and reduces costs.

No need for refilling or dust protection;

No routine maintenance required; No manual maintenance required.

High reliability High security Long service life

Model			CPD40		CPD45		CPD50
Configuration Number			GB2Li/GB3Li	A2DLIG3	GB2Li/GB3Li	A2DLIG3	GB2Li/GB3Li	A2DLIG3	GD2Li/GD3Li-600
Rated Lift Capacity	Q	kg	4000	4000	4500	4500	5000	5000	5000
Load Center Distance	C	mm	500						600
Powertrain			Lithium battery
Drive Mode			Seated Type
Wheelbase	L1	mm	1960	1960	1960	1960	1960	1960	2100
Tires
Tire type			solid tire
Number of wheels (front/rear)			2/2	2/2	2/2	2/2	2/2	2/2	2/2
Front track	W3	mm	1120	1140	1120	1140	1189	1189	1189
Rear track	W4	mm	1070	1070	1070	1070	1070	1070	1070
Tires (front)			250-15				28×12.5-15
Tires (rear)			21X8-9	21X8-9	21X8-9	21X8-9	21X8-9	21X8-9	21X8-9
Dimensions
Front overhang	L2	mm	560	560	560	560	565	565	565
Mast tilt (forward/backward)	a/β	o	8/8	8/8	8/8	8/8	8/8	8/8	8/8
Mast retracted height	H1	mm	2240	2240	2240	2240	2230	2230	2230
Free lift height	H3	mm	150	150	150	150	150	150	150
Maximum lift height	H	mm	3000	3000	3000	3000	3000	3000	3000
Maximum operating height	H2	mm	4235	4235	4235	4235	4225	4225	4355
Overhead guardrail height	H4	mm	2275	2275	2275	2275	2270	2270	2270
Fork Dimensions: Thickness x Width x Length	T×W×L4	mm	50×150×1070					55×150×1070	55×150×1220
Fork carriage, ISO 2328, Class/Type A, B		mm	3A						4A
Carriage length (excluding forks)	L'		2920	2920	2920	2920	2920	2920	3060
Carriage width	W1	mm	1350	1370	1350	1370	1500	1500	1500
Turning radius	r	mm	2580	2580	2580	2580	2580	2580	2695
Mast ground clearance	H5	mm	140	140	140	140	130	130	130
Wheelbase center ground clearance (fully loaded)	H6	mm	145	145	145	145	135	135	135
Right-angle stacking aisle width (Pallet 1000 x 1000 mm, 200 mm clearance)	Ast	mm	4340	4340	4340	4340	4340	4340	4460
Right-angle stacking aisle width (Pallet 1200 x 1200 mm, 200 mm clearance)	Ast	mm	4540	4540	4540	4540	4540	4540	4670
Performance
Driving speed (loaded/unloaded)		km/h	14/15	20/20	14/15	20/20	14/15	20/20	14/15
Lifting speed (loaded/unloaded)		mm/s	310/450	360/450	280/450	340/450	260/450	320/450	260/450
Lowering speed (loaded/unloaded)		mm/s	500/450	500/450	500/450	500/450	500/450	500/450	500/450
Maximum gradeability (loaded/unloaded)		%	17/27	20/27	16/26	20/26	15/25	18/25	15/25
Maximum traction (loaded)		N	21000	26000	21000	26000	21000	26000	21000
Acceleration time (10 meters) (loaded/unloaded)		S	6.58/6.25	6.58/6.25	6.70/6.19	6.70/6.19	6.82/6.14	6.82/6.14	6.82/6.14
Weight
Gross Weight (with/without Battery)		kg	6670/6080	6670/6080	6835/6117	6835/6117	7210/6492	7210/6492	7780/6760
Axle Load (Unladen, Front/Rear)		kg	3195/3505	3195/3505	3215/3620	3215/3620	3345/3865	3345/3865	3780/4015
Axle Load (Fully Laden, Front/Rear)		kg	9415/1310	9415/1310	10200/1135	10200/1135	11210/1035	11210/1035	11645/1205
Battery
Battery Voltage/Capacity		V/Ah	80/560	80/560	80/606	80/606	80/606	80/606	80/606
Battery Weight		kg	590	590	718	718	718	718	1020
Motor and Controller
Drive Motor Power (S2-60min)		kW	20	2×14	20	2×14	20	2×14	20
Hoist Motor Power (S3-15%)		kW	26.5	25	26.5	25	26.5	25	26.5
Steering Motor Power (S3-15%)		kW	2.5	-	2.5	-	2.5	-	2.5
Drive Motor Control Method		Mpa	MOS tube/AC
Hoist Motor Control Method			MOS tube/AC
Steering Motor Control Method			MOS tube/AC
Other
Service brake/parking brake			Hydraulic/Mechanical
Hydraulic system operating pressure			20	20	20	20	21.5	21.5	21.5
Controller model			萨牌/英摩森	萨牌	萨牌/英摩森	萨牌	萨牌/英摩森	萨牌	萨牌/英摩森

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.

Product categories

Recent Posts

Free Custom 1.5tons Hydraulic Electric Forklift CPD15 Warehouse Material Handling Equipments

HELI K2 Series 4wheel Counterbalanced Electric Forklift Handling Equipment for Building Construction Forklift Stacking Moving

Heli Forklift CPD15 H4 Series 1.5Ton Electric Forklift Lithium-ion Battery Powered Operated Fork Lift Truck

Heli G3 Series Forklifts 4Ton5ton Lithium Battery Forklift With Origin Factory Price New Models CPD50

24V Battery Voltage CQDE15C-30 Electric Reach Forklift Material Handling Equipments for Warehouse Usage

High Efficiency CQD15-30 Battery Powered Stand Type Electric Reach Forklift 48V Electric Reach Truck

New Design 1.5Ton 3000mm 4000mm 5000mm 6000mm Stand Type CQD15D-30 All Electric Reach Forklift Pallet Stacker Truck

Electric Reach Forklift CQDE15-30 Seated Type 1.5tons Loading Capacity Warehouse Handling Equipments

2tons Loading Capacity SL20L3E-E Electric Pallet Truck Pallet Jack

CQD Electric Reach Forklift Warehouse Material Handling Equipment Reach Truck Electric Forklift

Heli G3 Series Forklifts 4Ton5ton Lithium Battery Forklift With Origin Factory Price New Models CPD50

Product Description

Featured Products

HELI K2 Series 4wheel Counterbalanced Electric Forklift Handling Equipme...

Heli Forklift CPD15 H4 Series 1.5Ton Electric Forklift Lithium-ion Batte...

Heli G3 Series Forklifts 4Ton5ton Lithium Battery Forklift With Origin F...

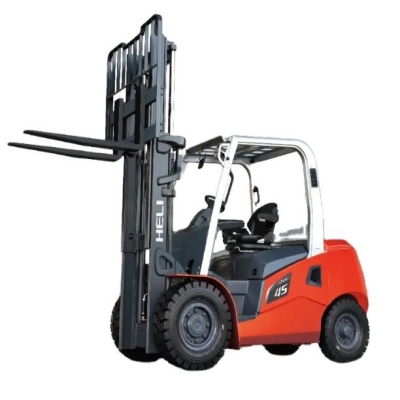

Heli G2 Series Rear Drive Seat Electric Forklift CPD50 Lithium Battery F...
