1) The shock-absorbing springs require no frequent adjustment and proactively adjust the drive unit to road conditions, reducing ground impact and improving operating efficiency.
2) An emergency power-off switch is standard. Simply pressing the emergency stop button cuts off all power, bringing the vehicle to an immediate stop or rapidly shutting off power in an emergency, providing safety protection.
3) Multi-function handle, integrated controls (acceleration, horn, emergency collision avoidance, lift button), ergonomic design makes operation more comfortable.

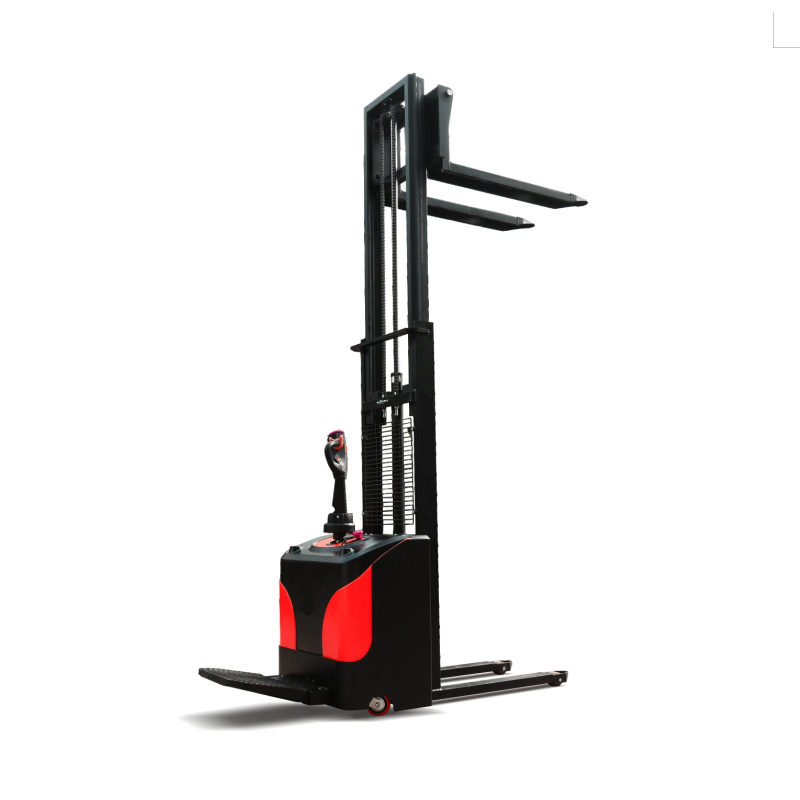

Model
CDD15W II-30
CDD20W II-30
Power
Electric
Electric
Operation type
Standing type
Standing type
Rated load capacity
1500kg
2000kg
Load center distance
500mm
500mm
Bearing distance
728mm
813mm
Wheelbase
1302mm
1338mm
Self weight with battery
760kg
870kg
Wheel type
PU
PU
Front Wheel
∅80*70
∅80*70
Rear wheel
Ø210*70
Ø250*80
Balance wheel
Ø125*50
Ø125*50
Wheelbase (front wheel)
515mm
490mm
Wheelbase (rear wheel)
624mm
624mm
Lowered mast height
2066mm
2066mm
Lifting height
3000mm
3000mm
Mast height, extended
3540mm
3540mm
Handle height
1474mm
1474mm
Fork height when mast lowered
86mm
86mm
Vehicle length
2041/2456mm
2000/2411mm
Vehicle width
850mm
850mm
Forks size
65/165/1150mm
65/190/1150mm
Fork spread
680mm
680mm
Min.ground clearance
30mm
30mm
Stacking aisle width,Pallet folded 1mx1.2m(1m along forks)
