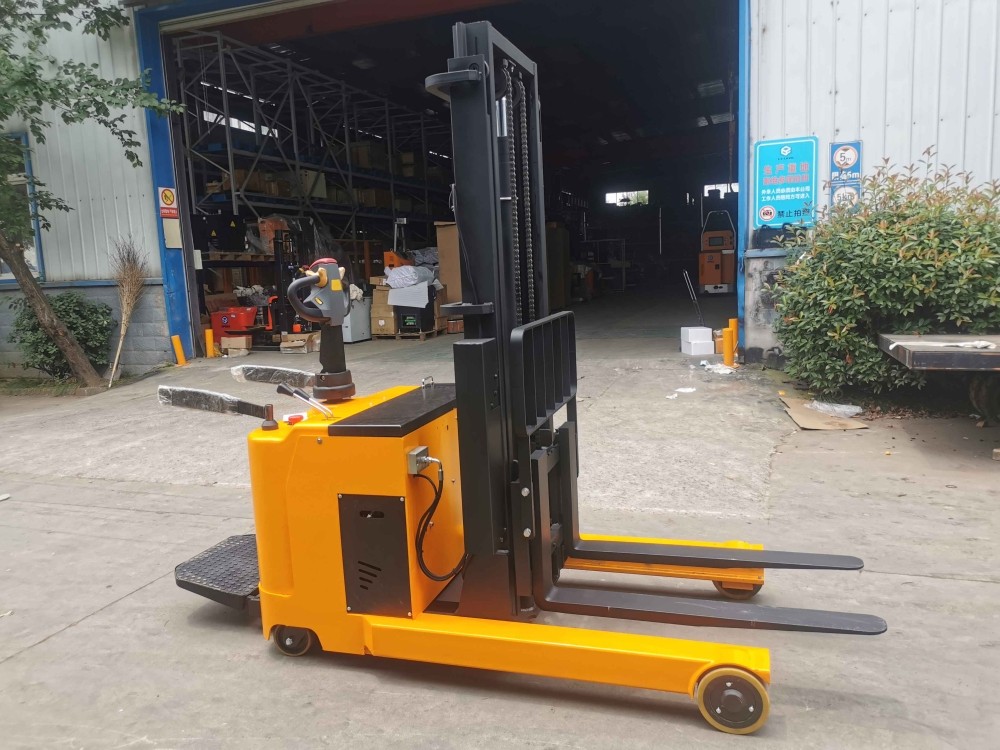

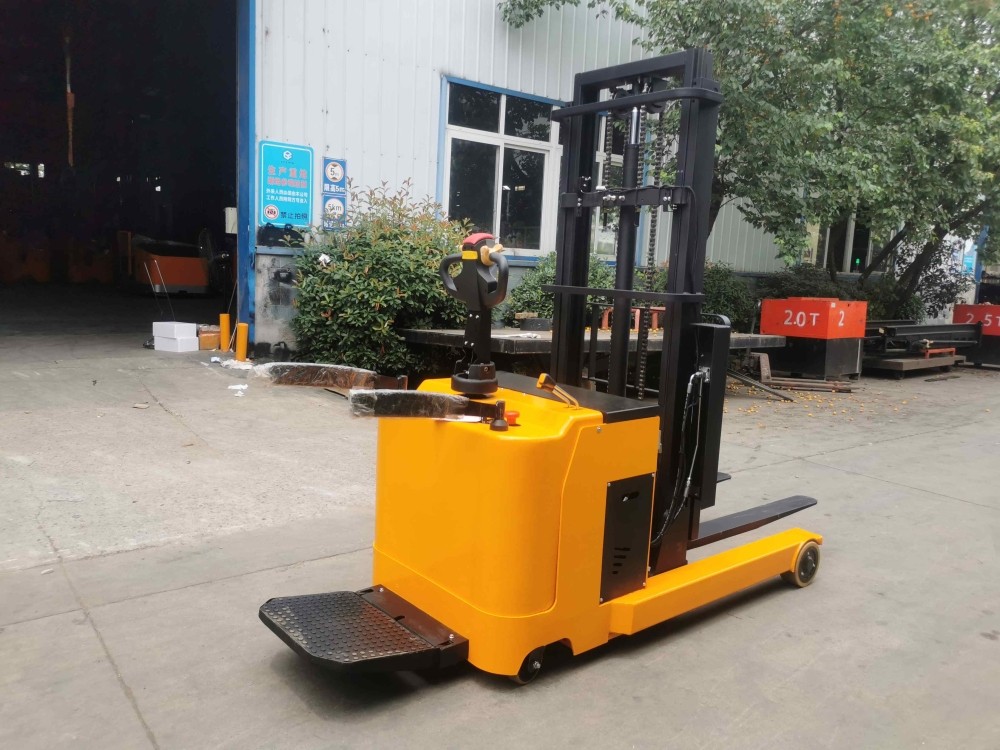

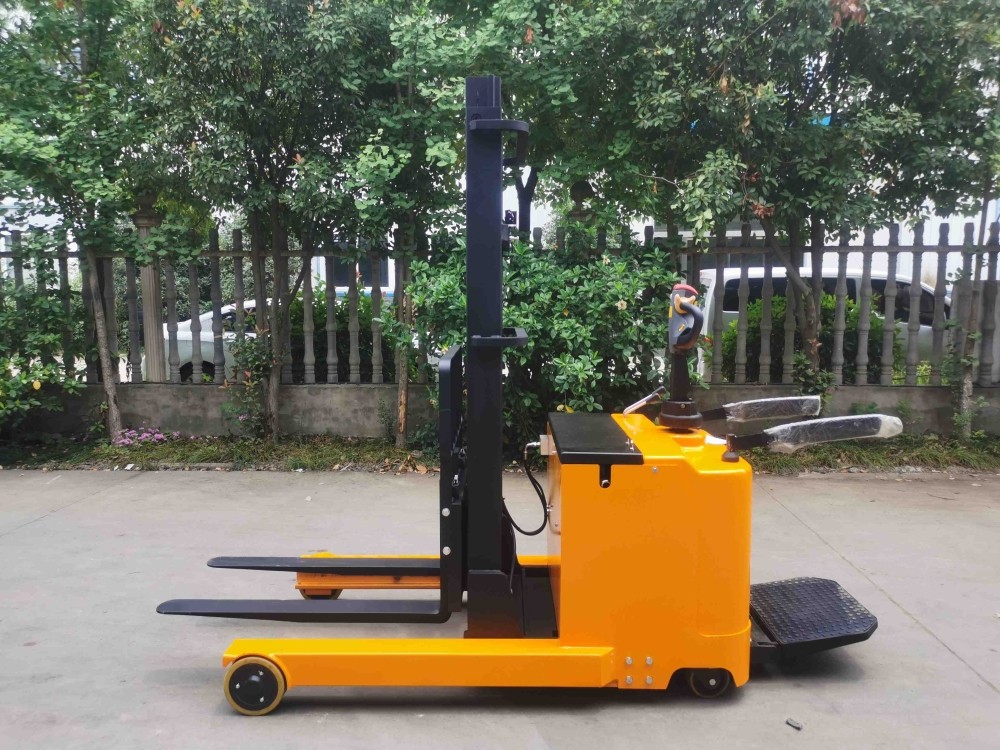

New Models 1.5 2.0 2.5Ton Lightweight Stand Counterbalanced Pallet Stacker Truck Battery Forklift
INQUIRY
  • Description
  • Inquiry

Product Description



Pallet stacker(counterbalance type), with adjustable forged forks, various pallets available, easy access to goods; Equipped with branded control system and multi-functional protection system, it offers higher level functional safety; Equipped with vertical  branded gear  box,  multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.

Characteristic
1.1
Model
CPDB10-25
CPDB15-25
CPDB20-25
1.2
Power(electricity,diesel,LPG,petrol,manual)
Electric
Electric
Electric
1.3
Operation(manual,walkie,side-standing,picker)
Ridertype
Rider type
Rider type
1.4
Rated load capacity
Q(kg)
1000
1500
2000
1.5
Load center distance
C(mm)
500
500
500
1.6
The front overhang distance
X(mm)
129
129
129
1.7
Wheelbase
Y(mm)
1335
1435
1635
Weight
2.1
Service weight(incl.battery)
kg
1700
1775
1890
Wheel/
Chassis
3.1
Wheeltype(The front/rear)
PU
PU
PU
3.2
Drive specification
ø×w(mm)
φ230*75
φ230*75
φ230*75
3.3
Front wheel specification
ø×w(mm)
φ210*85
φ210*85
φ210*85
3.4
The rearwheelspecification
ø×w(mm)
φ150*50
φ150*50
φ150*50
3.5
Tread,front
b10(mm)
898
898
898
3.6
Tread,rear
b11(mm)
736
736
736
Dimensions
4.1
Forks height,mast retracted
h1(mm)
1845
1845
1845
4.2
Lift height
h3(mm)
2500
2500
2500
4.3
Mast height,extended
h4(mm)
3470
3470
3470
4.4
Overallvehiclelength,pedalfolded(excl/inclforks)
12(mm)
1757/2834
1857/2934
2057/3134
4.5
Vehicle width
bi(mm)
983
983
983
4.6
Forks dimensions
s/e/l(mm)
35/100/1070
35/100/1070
40/122/1070
4.7
Forks adjustment dimensions
b5(mm)
210-680
210-680
210-705
4.8
The min.ground clearance(Wheelbase center)
m2(mm)
70
70
70
4.9
Stacking aisle width,pallet1m×1.2m(1.2m cross forks)
(pedalfolded/unfolded)
Ast(mm)
3131/3534
3231/3634
3431/3834
4.10
The min.turning radius(pedalfolded/unfolded)
Wa(mm)
1652/2055
1752/2155
1952/2355
Performance
5.1
Travelling speed,unladen/full-loaded
km/h
5/4
5/4
5/4
5.2
Lift speed unladen/full-loaded
m/s
0.112/0.095
0.112/0.085
0.090/0.070
5.3
Lower speedunladen/full-loaded
m/s
0.094/0.110
0.094/0.115
0.096/0.123
5.4
The max.gradability,unladen/full-loaded
%
8/5
8/5
6/4
5.5
Service brake
Electromagnetic
Electromagnetic
Electromagnetic
Motor
6.1
Drive motor power
kw
1.5
1.5
2.5
6.2
Lift motor power
kw
2.2
2.2
2.2
6.3
Battery type
Lead-acid
Lead-acid
Lead-acid
6.4
Battery voltage/capacity
V/Ah
24/210
24/210
24/210
6.5
Charger
V/A
24/30
24/30
24/30
Others
7.1
Drive controlmode
AC
AC
AC
7.2
Noise level at driver'sears according to En12053
dB(A)
75
75
75


FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
