Special high-strength arch-design cab. Double rows seating layout,two doors design. Fans, parking air conditioner are optional.
Type
EPQ300
Power
Lithium iron phosphate battery
Performance
Max.hitch towing capacity
KN
28.8
Rated hitch towing capacity
13.2
Rated towing capacity
Single unit towing capacity
Kg
30000
Max.drive speed
Movingforward(unladen/full-loaded)
Km/h
25
Moving backward
10
Min.turning radius Wa
mm
3200
Max.gradability when unladen
%
30
Max.brake distance
Without trailer
m
5.7
Rated towing capacity
4.7
Appearance dimensions
Overall length (Tow pin included) l1
mm
3135
Overall width b1
1440
Overall height(With cab,siren light) h1
2185
The front wheelbase b2
1220
The rear wheelbase b3
1190
Wheelbase Y
1600
Tow pin hitch height up/down h3
310/400
Min.ground clearance m2
165
Tyre
Tyre specifications
The frontwheel
6.50-10 PR
The rearwheel
7.00-15 PR
Weight
Overallvehicle weight(with cab)
Kg
4030
Motor
Rated power
kW
23
Battery
Voltage/capacity
V/Ah
80V/600Ah
Charger
Voltage/current
V/A
80V/80A
Steering
Hydraulic power steering
Brake
Vacuum powerbrake system
Drive brake
Drum brake therear),Disc brake(thefront)
Parkingbrake
Mechanical rear wheel brake

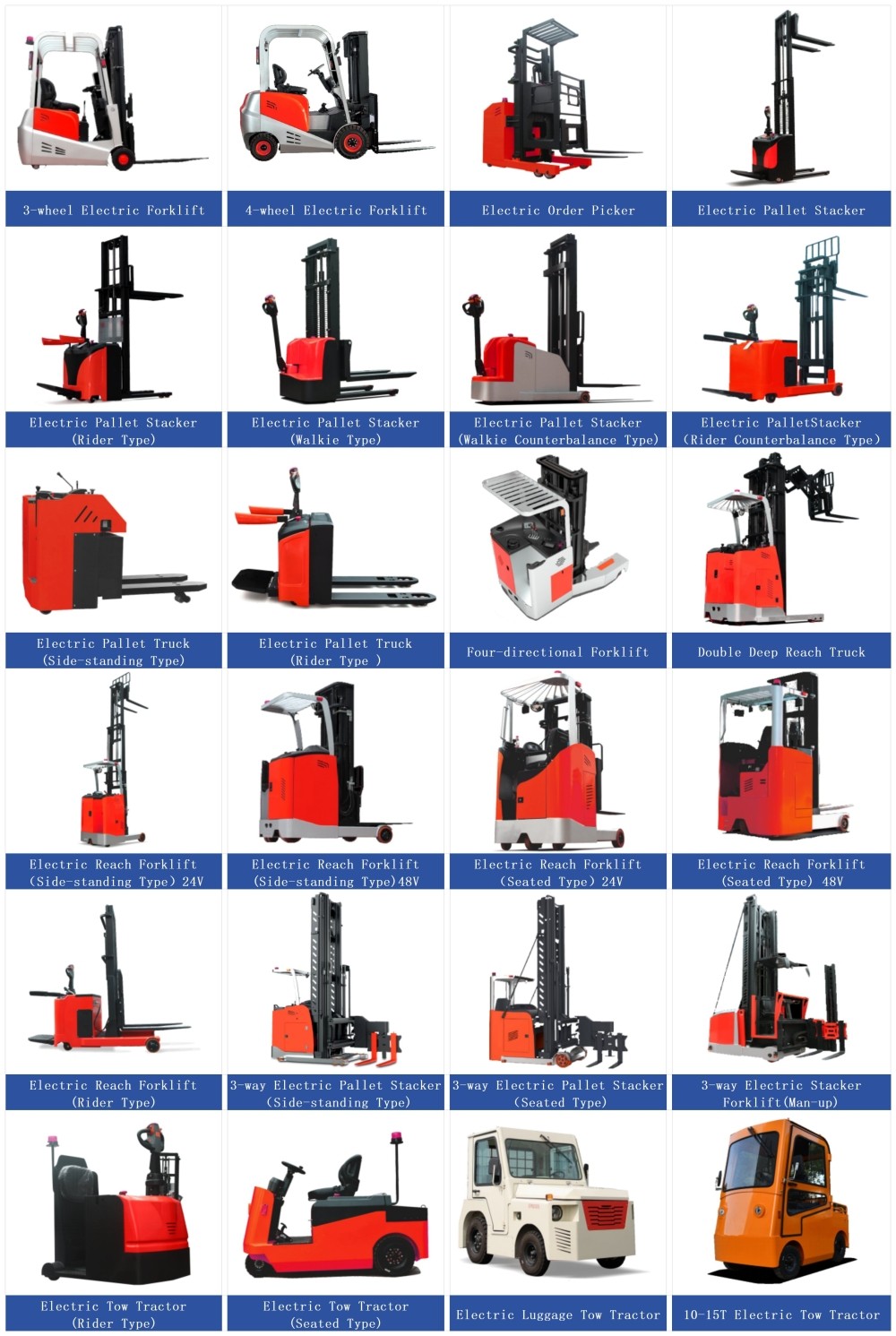

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.
FAQ
Q:What is theMOQ? A: One set.
Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase? A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q:How long is the warranty time? A: 12 months or 2000 hours whichever comes first.
Q:What is the payment terms? A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
