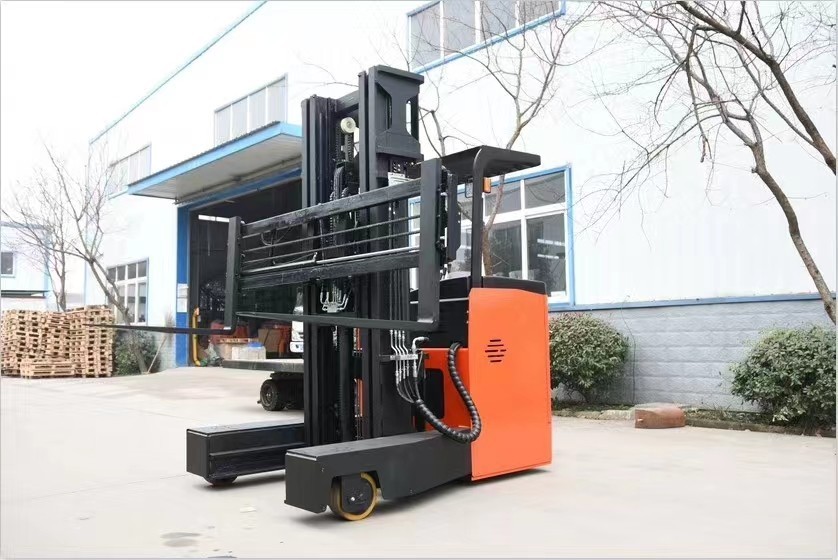

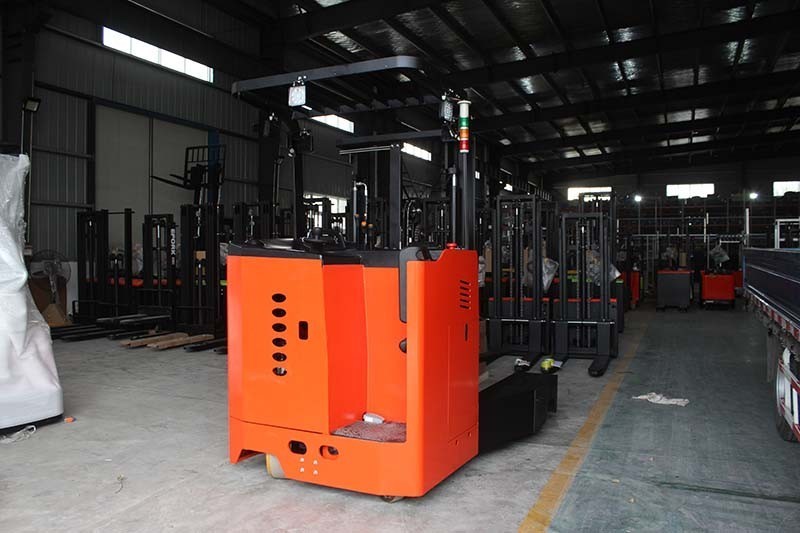

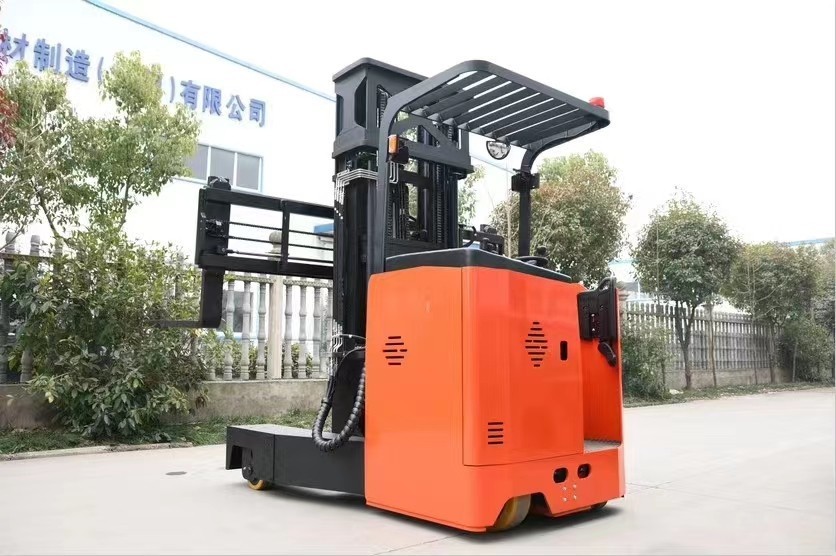

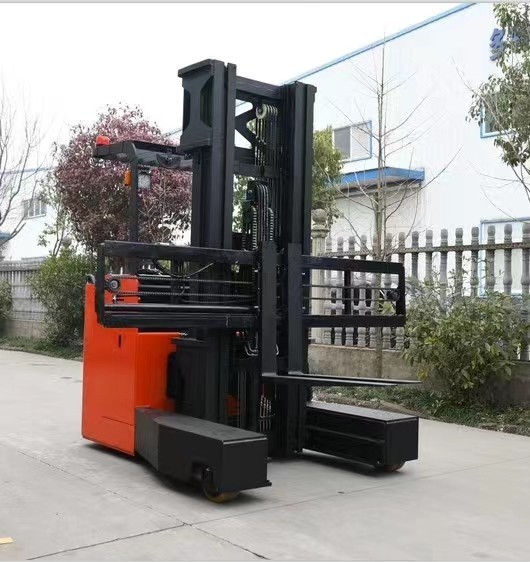

Four-directional Forklift CQDS
Four-directional Forklift CQDS
Four-directional Forklift CQDS
Four-directional Forklift CQDS
Four-directional Forklift CQDS

Four-directional Forklift CQDS

Four-way driving, suits for VNA stacking operation, especially
INQUIRY
  • Description
  • Inquiry

Product Description

Four-way driving, suits for VNA stacking operation, especially the long material handling, greatly saving the warehouse storage space, it can switch from straight line driving to lateral driving quickly with easy operation. High efficiency and less fault;

Equipped with branded control system and multi-functional  protection system,it offers higher level fuctional safety;
Equipped with smart HD display instrument,offering real-time vehicle operation status and fault display,it is easy for troubleshooting and maintenance;

It adopts full AC drive system, with quicker response and more accurate control, further improving the vehicle performance;

Equipped with EPS steering system, with easy and flexible operation, improving the  operational stability in high speed;

It displays real-time drive wheel angle , easy for the fine -tunning inner V NA , safe , reasonable and accurate;

Specialised large-capacity power battery, with strong  power, safe and reliable , easy for charging. Long end u - rance and low maintenance cost;

Side-pull battery suits multi-shifin g occasions , with standard roller cart for easy change;

Electromagnetic brake features in quick parking and automatic brake.





Characteristic
Model

CQDS15-45S
CQDS20-45S
CQDS25-45S
Operation(Manual,walkie,side-standing,picker)

Side-standing
Rated load capacity
Q(kg)
1500
2000
2500
Load centerdistance
C(mm)
500
500
500
Wheelbase
Y(mm)
1622
1722
1822
The front overhang distance
X(mm)
200
200
200
Weight
Service weight(incl.battery)
kg
3400
3500
3800



Wheel/
Chassis
Wheeltype

PU
PU
PU
The front wheel specification
ø×w(mm)
φ267*114
φ267*114
φ267*114
Drive wheel specification
ø×w(mm)
φ382*142
φ382*142
φ382*142
Balance wheelspecification
ø×w(mm)
φ180*76
φ180*76
φ180*76
Tread,front
b10(mm)
1430
1430
1430












Dimensions
Tread,rear
b11(mm)
703
703
703
Vehicle height,mast retracted
h1(mm)
2110
2110
2360
Free lifting height
h2(mm)
1500
1500
1500
Lift height
h3(mm)
4500
4500
4500
Mast height,extended
h4(mm)
5480
5480
5480
Overhead guard height
h14(mm)
2280
2280
2280
Forks height,mast retracted
h13(mm)
35
40
45
Mast/forks tilting angle(the front/the rear)
a/β(°)
3/5
3/5
3/5
Overall vehicle length (incl.forks)
l1mm)
2505
2585
2700
Vehicle bodylength(excl.forks)
12(mm)
2046
2146
2246
Vehicle body width
b1(mm)
1680
1680
1680
Forks dimensions
s/e/l(mm)
35/100/1070
40/122/1070
45/125/1070
Forks adjustment dimensions
b5(mm)
210-705
260-705
270-840
Forward moving distance
L(mm)
655
700
640
The min.groundclearance(wheelbase center)
m2(mm)
80
80
80
Stacking aisle width,pallet1000×1200(1200 acrossforks)
Ast(mm)
2705
2785
2900




Peformance
The min.turning radius
Wa(mm)
1905
2000
2105
Travelling speed,unladen/full-loaded
km/h
8/7
8/7
8/7
Lift speed,unladen/full-loaded
m/s
0.320/0.260
0.350/0.240
0.330/0.240
Lower speed,unladen/full-loaded
m/s
0.350/0.380
0.320/0.400
0.320/0.400
The max.gradability,unladen/full-loaded
%
≤10
≤10
≤10
Service brake

Electromagnetic




Motor
Drive motorpower
kw
6.5AC
6.5AC
6.5AC
Lift power power
kw
8.6 AC
8.6 AC
8.6 AC
Battery type

Lead-acid
Lead-acid
Lead-acid
Batteryvoltage/capacity
V/Ah
48/300
48/400
48/400
Motor
V/A
48/40
48/50
48/50

Others
Drive controlmode

AC
AC
AC
Noise level atdriver'sears according to En12053
dB(A)
75
75
75
