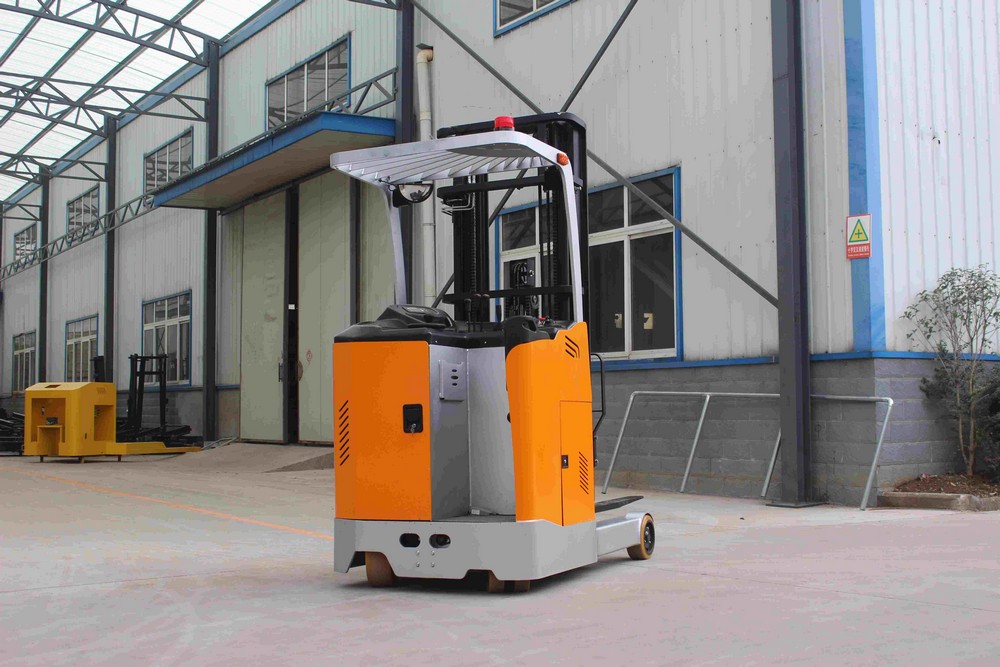

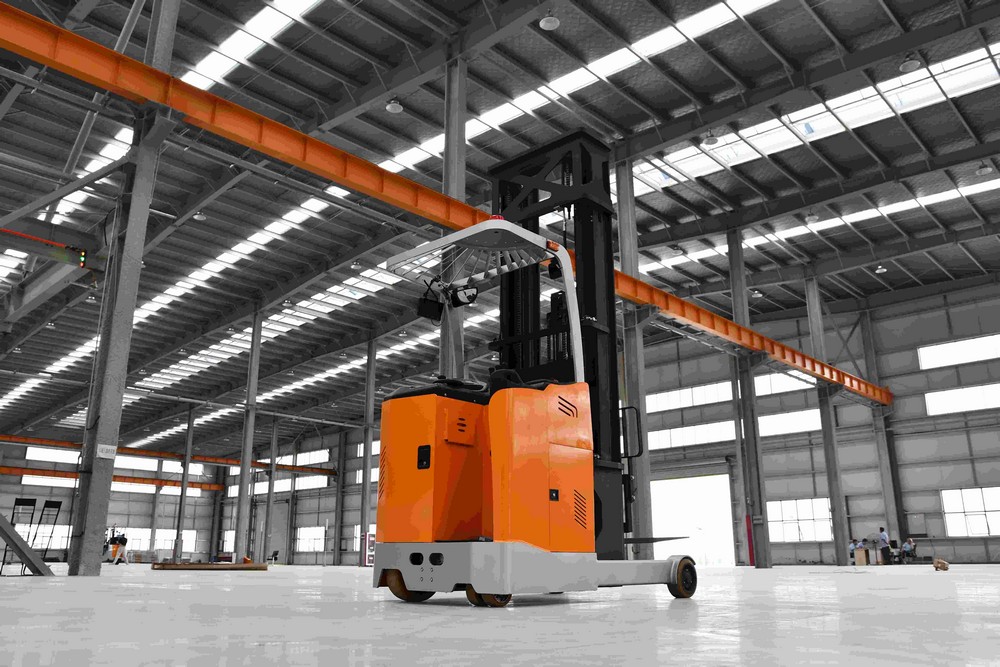

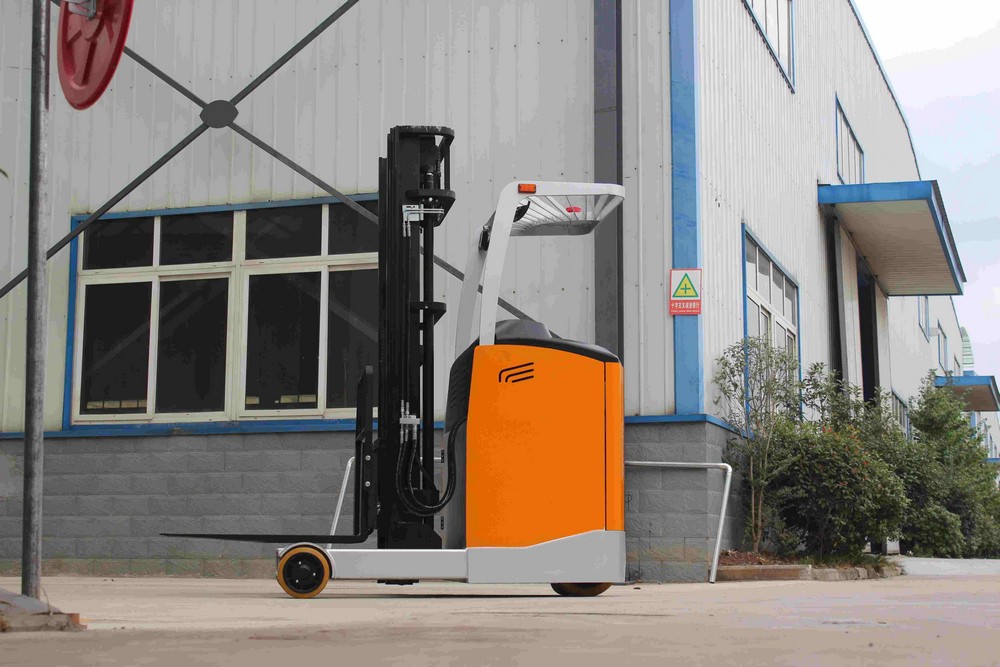

Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability
Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability
Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability
Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability
Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability

Standing-on CQD15-60S Reach Truck With Capacity of 1500kg Narrow Working Quiet Operation and High Stability

It features in overall mast moving forward, with small turning radius to neglect obstacles at the bo
INQUIRY
  • Description
  • Inquiry

Product Description

It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks .
It suits any space-limited scenarios, easy loading or unloading goods.
6.5m or above high-strength H type mast steel, not easy to deform, with reliable and stable operation.

Standard forks tilting up or down function,prevents goods from tipping over and improving the load capability

Equipped with full AC drive system, small volume, light weight, high efficiency , free - maintenance and carbon - brush replacement. No more maintenance and protection.
Side-pull battery suits multi-shifing occasions , with standard roller trolley for easy change.

Characteristic
Model

CQD15-45S
CQD20-45S
CQD20M-70S
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
Operation

Side-standing
Rated load capacity
Q(kg)
1500
2000
2000
Load center distance
C(mm)
500
500
500
Wheelbase
Y(mm)
1383
1533
1693
Forward moving distance
L(mm)
500
594
565
Weight
Service weight(incl.battery)
kg
2850
3025
3355
Wheel/
Chassis
Wheeltype

PU
PU
PU
Front wheel specification
ø×w(mm)
φ267*114
φ267*114
φ267*114
Drivewheel specification
ø×w(mm)
φ382*142
φ382*142
φ382*142
Balance wheel specification
ø×w(mm)
φ180*76
φ180*76
φ180*76
Tread,front
b10(mm)
1081
1081
1155
Dimensions
Vehicle height,mast retracted
h1(mm)
2100
2100
3210
Free lift height
h2(mm)
1500
1500
2320
Liftheight
h3(mm)
4500
4500
7000
Mast height,extended
h4(mm)
5480
5480
7965
Overhead guard height
h14(mm)
2305/2260
Forks height,mast retracted
h13(mm)
35
40
40
Mast/forkstilting angle(the front/the rear)
a/β(°)
3/5
3/5
3/5
Vehicle body length(excl.forks/incl.forks)
12(mm)
1752/2405
1902/2405
2060/2550
Vehicle body width
b1(mm)
1195
1195
1270
Forks dimensions
s/e/l(mm)
35/100/1070
40/122/1070
Forks adjustment dimensions
b5(mm)
210-700
244-700
244-700
The min.ground clearance(Wheelbase center)
m2(mm)
80
80
80
Stackingaisle width,pallet 1m×1.2m(1.2m crossforks)
Ast(mm)
2730
2882
3042
The min.turning radius
Wa(mm)
1680
1836
1996
Peformance
Travelling speed,unladen/full-loaded
km/h
10/9
10/9
8/7
Lift speed unladen/full-loaded
m/s
0.330/0.245
0.300/0.235
0.280/0.200
Lower speed unladen/full-loaded
m/s
0.260/0.325
0.330/0.400
The max.gradability,unladen/full-loaded
%
≤10
≤10
≤10
Service brake

Electromagnetic
Motor
Drivemotor power
kw
4.5AC
6.5AC
6.5AC
Lift motorpower
kw
7.5AC
8.6AC
8.6 AC
Battery type

Lead-acid
Battery voltage/capacity
V/Ah
48/300
48/400
48/400
Charger
V/A
48/40
48/50
48/50
Others
Drive control mode

AC
AC
AC
Noise level at driver's ears accordingto En12053
dB(A)
75
75
75
