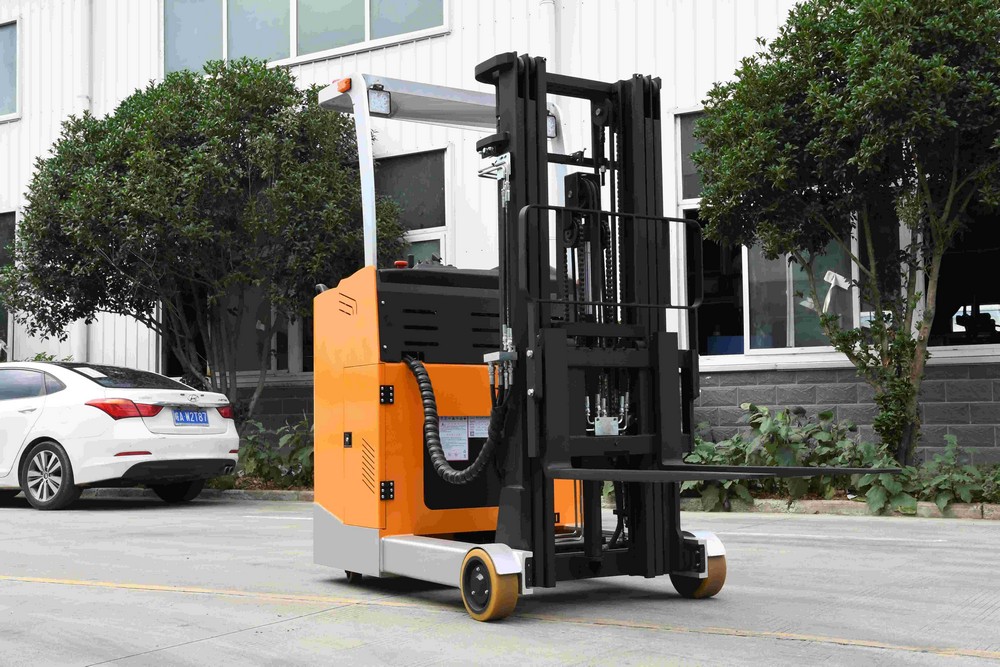

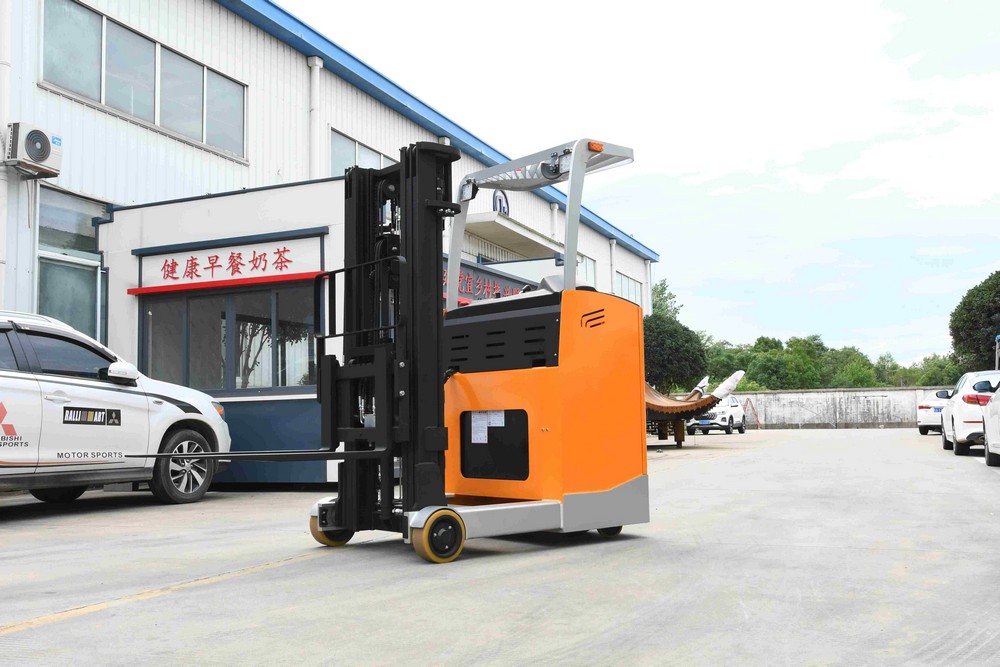

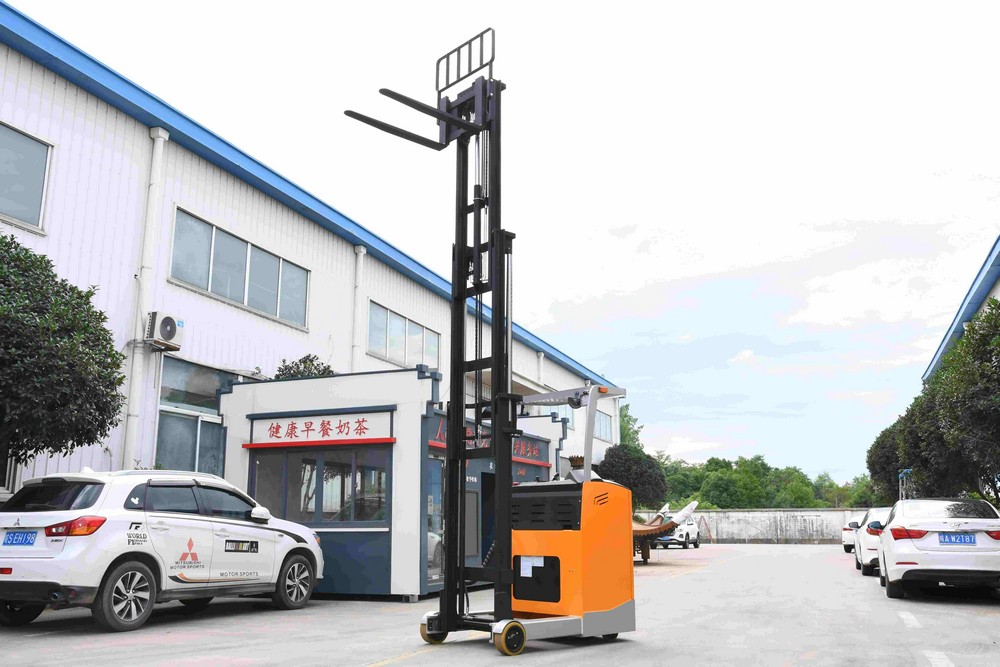

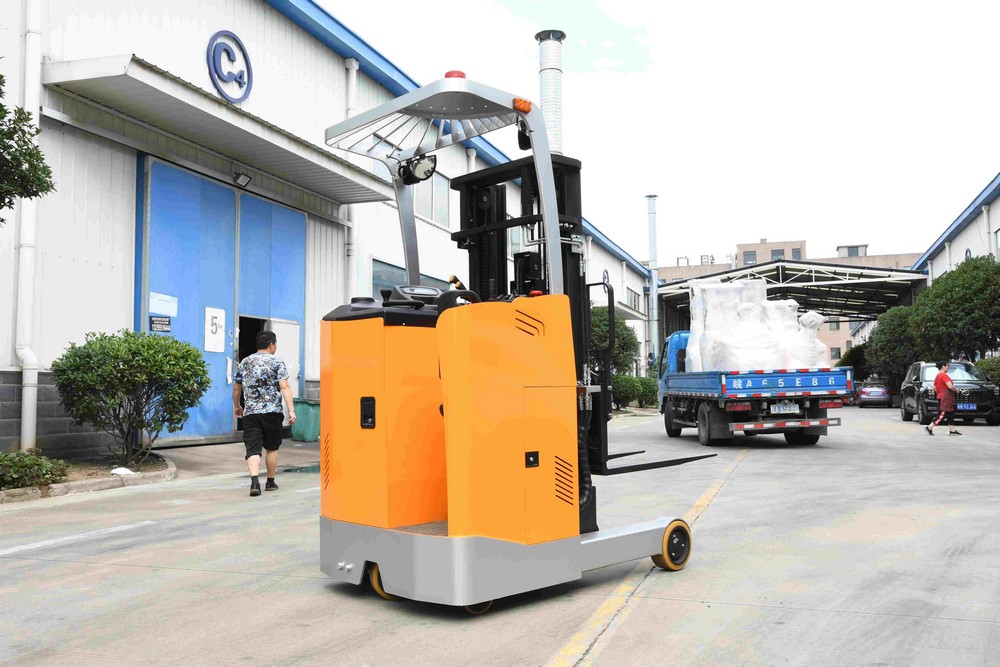

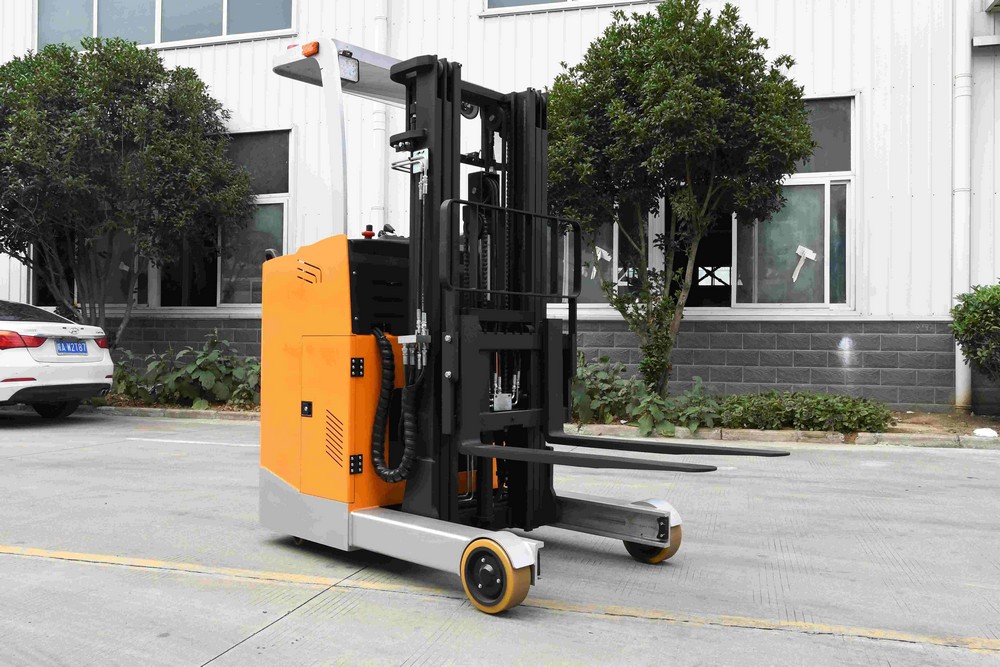

CQD15D-40 electric reach forklift 24V stand type
INQUIRY
  • Description
  • Inquiry

Product Description

1) Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.

2) It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-limited scenarios, easy loading or unloading goods.

3) Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety.

4) Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.

5) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability.

6) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement.  No more maintenance and protection

Characteristic
Model

CQD12D-45S
CQD15D-45S
CQD20D-45S
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
Operation(manual,walkie,side-standing,picker)

Side-standing
Rated load capacity
Q(kg)
1200
1500
2000
Load center distance
C(mm)
500
500
500
The front overhang distance
X(mm)
145
145
145
Wheelbase
Y(mm)
1399
1399
1584
Weight
Service weight(incl.battery)
kg
2200
2200
2300
Wheel/
Chassis
Wheel type

PU
PU
PU
Front wheel specification
ø×w(mm)
φ254*104
φ254*104
φ254*104
Drivewheel specification
ø×w(mm)
φ230*75
φ230*75
φ230*75
Balance Wheel specification
ø×w(mm)
φ150*50
φ150*50
φ150*50
Tread,front
b10(mm)
978
978
978
Tread,rear
b11(mm)
804
804
804
Dimensions
Vehicle height,mast retracted
h1(mm)
2120
2120
2120
Liftheight
h3(mm)
4500
4500
4500
Mast height,extended
h4(mm)
5485
5485
5485
Overhead guard height
h14(mm)
2308
2308
2308
Forks height,mast retracted
h13(mm)
35
35
40
Mast/forkstilting angle(the front/the rear)
a/β(°)
3/5
3/5
3/5
Vehicle bodylength (incl.forks)
l1(mm)
2272
2272
2460
Vehicle body length(excl.forks)
12(mm)
1703
1703
1888
Vehicle body width
b1(mm)
1098
1098
1098
Forks dimensions
s/e/l(mm)
35/100/1070
40/122/1070
Forks adjustment dimensions
b5(mm)
210-705
210-705
244-705
Forward moving distance
L(mm)
500
500
600
The min.ground clearance(Wheelbase center)
m2(mm)
77
77
77
Stackingaisle width,pallet1m×1.2m(1.2m cross forks)
Ast(mm)
2771
2771
2880
The min.turning radius
Wa(mm)
1600
1600
1781
Peformance
Travelling speed,unladen/ful-loaded
km/h
5/4
5/4
5/4
Lift speed unladen/full-loaded
m/s
0.135/0.115
0.135/0.110
0.135/0.100
Lowerspeed unladen/full-loaded
m/s
0.085/0.120
0.085/0.132
0.085/0.140
The max.gradability,unladen/full-loaded
%
8/6
8/4
8/4
Service brake

Electromagnetic
Motor
Drivemotor power
kw
1.5
2.5
2.5
Liftmotorpower
kw
3
3
3
Battery type

Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
24/280
24/280
24/280
Charger
V/A
24/40
24/40
24/40
Others
Drive control mode

AC
AC
AC
Noise level at driver'sears accordingto En12053
dB(A)
75
75
75
Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
