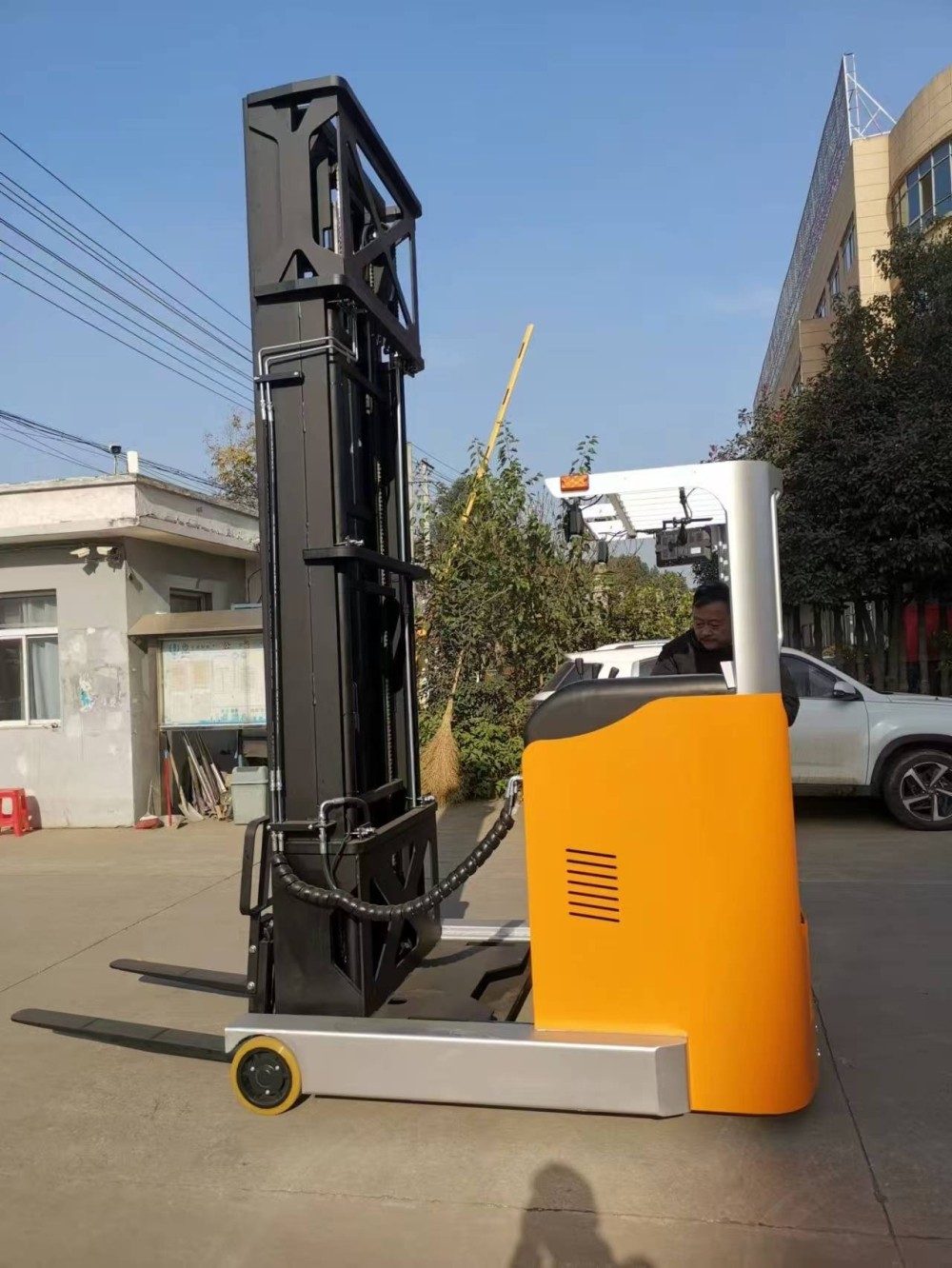

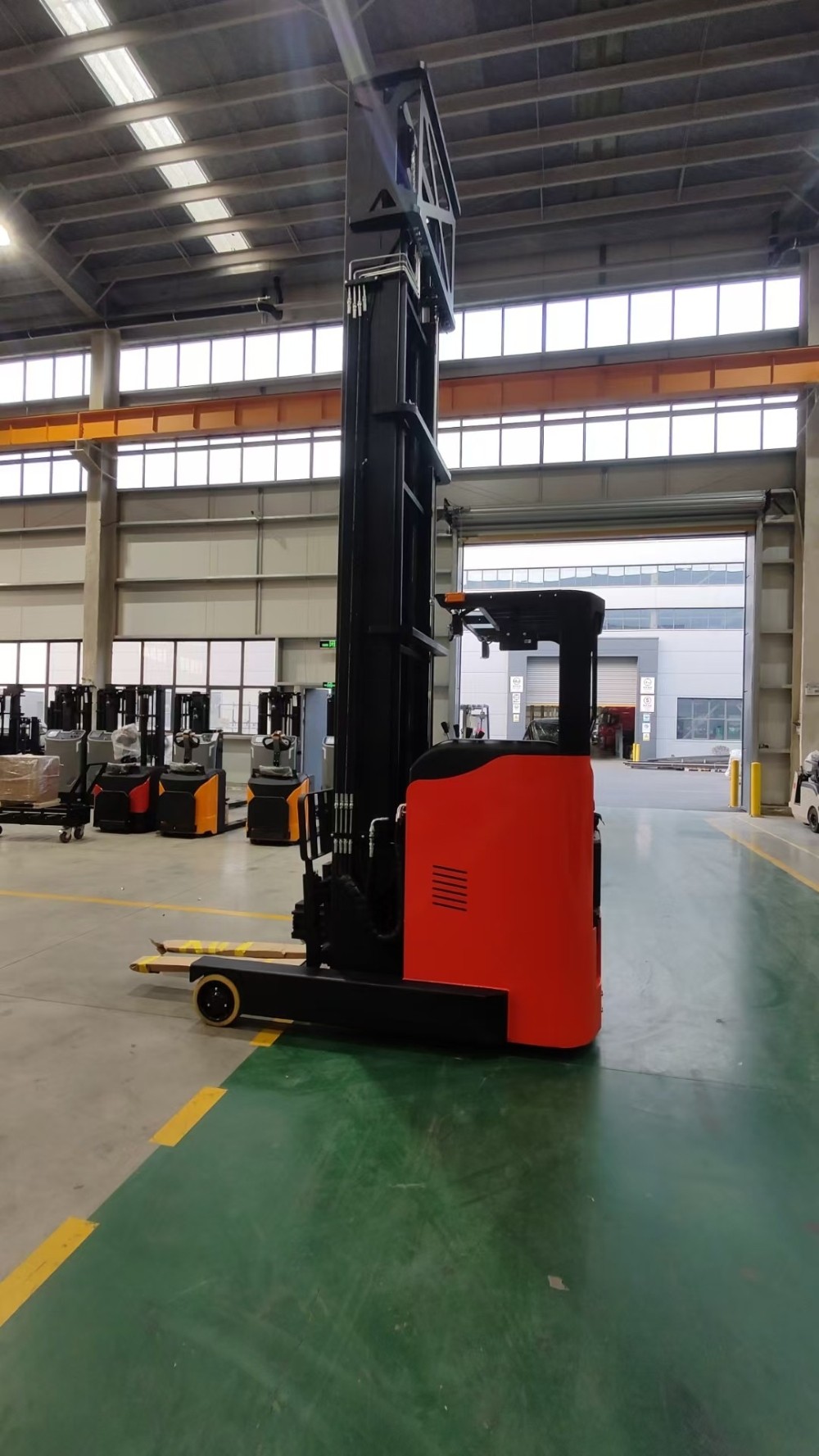

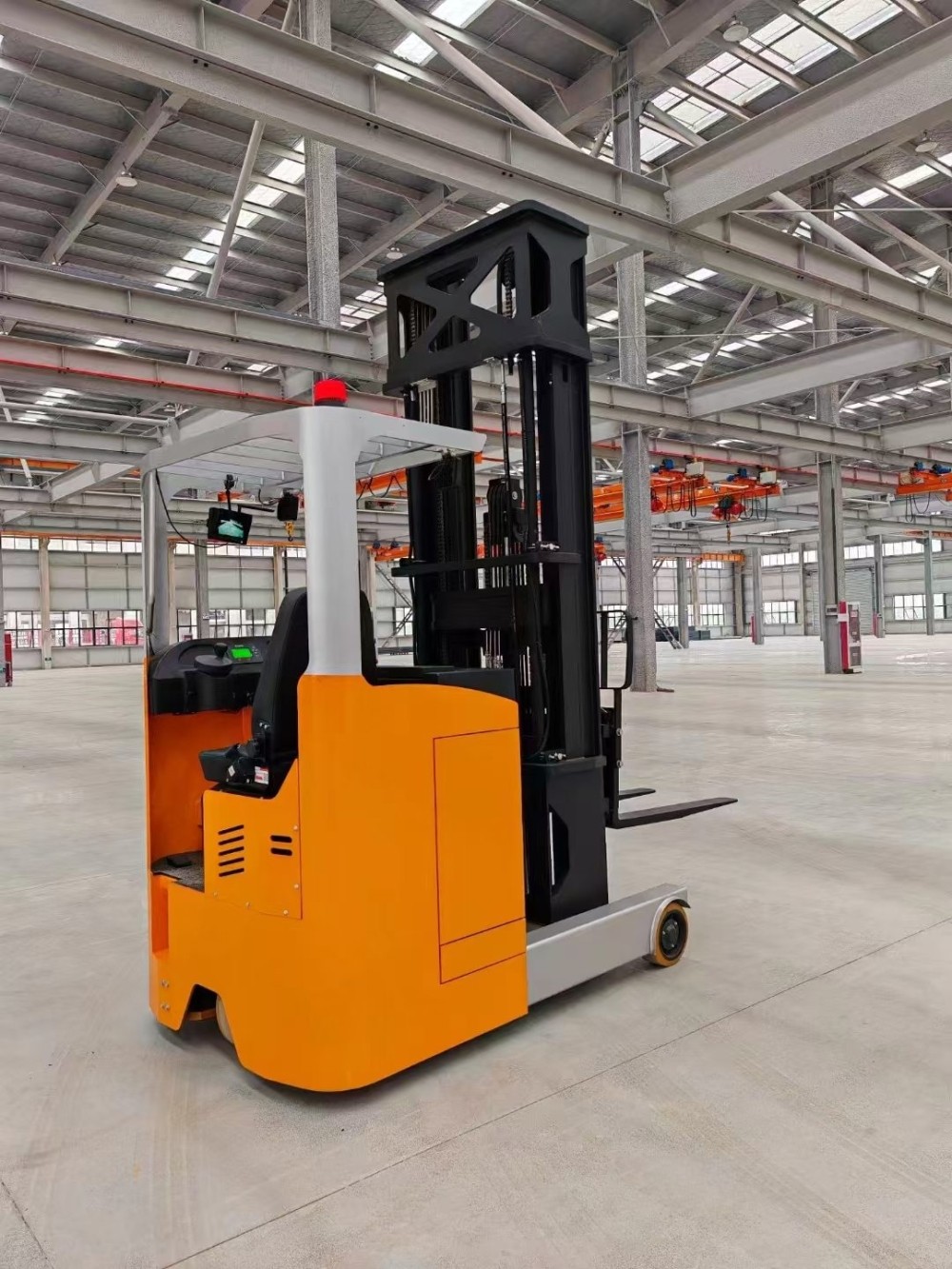

CQDE20-30 electric reach forklift 48V seated type
INQUIRY
  • Description
  • Inquiry

Product Description

1) Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage applications.

2) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.

3) Equipped with branded control system and multi-functional protection system. It offers a higher level functional safety.

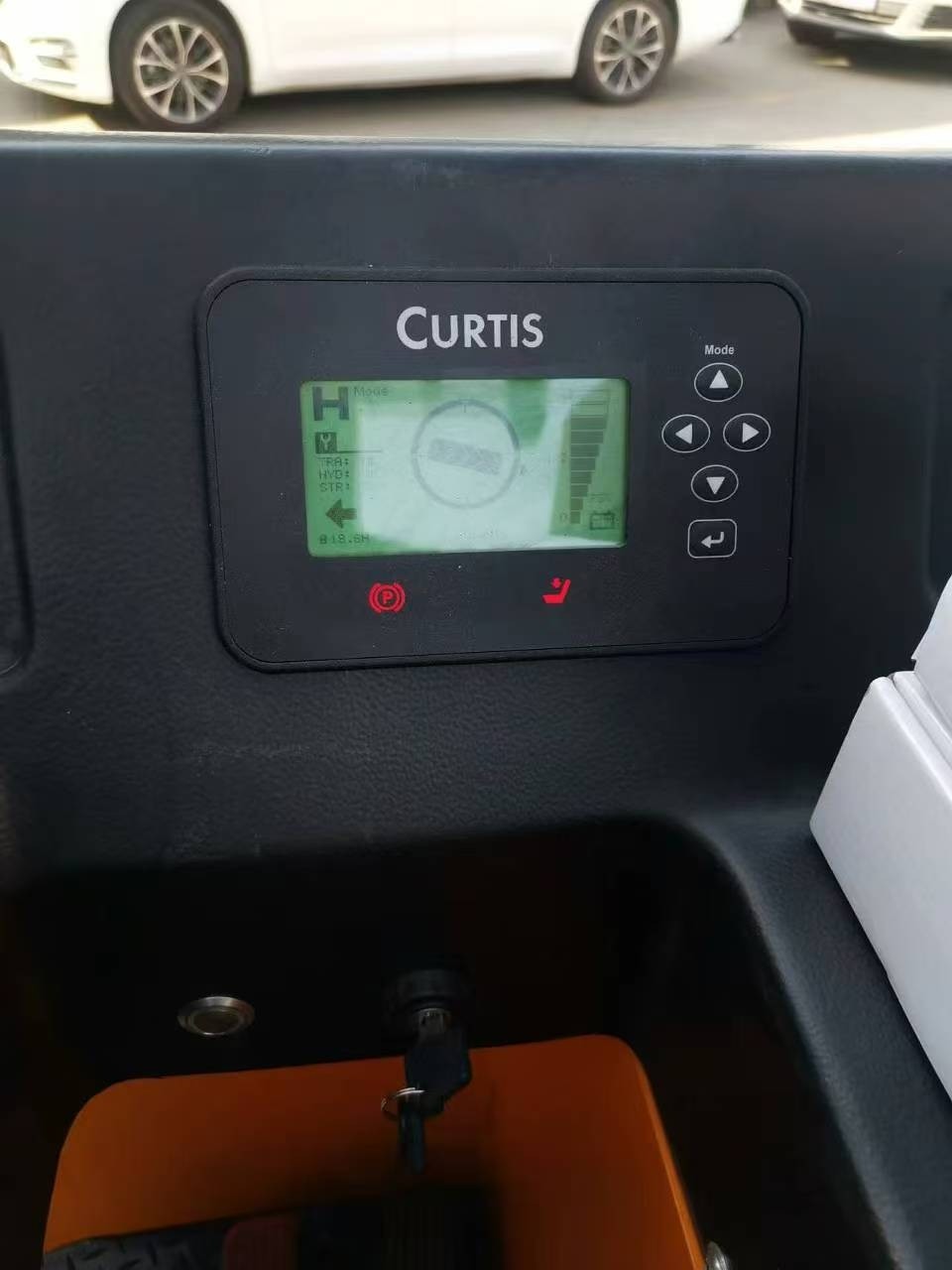

4) Equipped with smart HD display instrument, offering real-time vehicle operation status and fault display, it is easy for

troubleshooting and maintenance.

5) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability.

6) Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.

7) Side-pull battery suits multi-shifing occasions , with standard roller cart for easy change.

Characteristic
Model

CQDE15-45S
CQDE20-45S
CQDE20H-120S
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
Operation(manual,walkie,side-standing,picker)

Seated type
Seated type
Seated type
Rated load capacity
Q(kg)
1500
2000
2000
Load center distance
C(mm)
500
500
500
Wheelbase
Y(mm)
1470
1620
1650
Forward moving distance
L(mm)
505
655
610
The front overhang distance
X(mm)
183
183
183
Weight
Service weight(incl.battery)
kg
3100
3200
5390
Wheel/
Chassis
Wheel type

PU
PU
PU
Front wheel specification
ø×w(mm)
φ267*114
φ267*114
φ267*114
Drive wheel specification
ø×w(mm)
φ382*142
φ382*142
φ382*142
Tread,front
b10(mm)
1180
1180
1329
Dimensions
Vehicle height,mast retracted
h1(mm)
2105
2105
5136
Free lift height
h2(mm)
1500
1500
4020
Liftheight
h3(mm)
4500
4500
12000
Mast height,extended
h4(mm)
5465
5465
12995
Overhead guard height
h14(mm)
2180
2180
2180
Forks height,mast retracted
h13(mm)
35
40
40
Mast/forkstiltingangle (the front/the rear)
a/β(°)
3/5
3/5
3/5
Vehicle body length(incl.forks)
12(mm)
2477
2477
2565
Vehicle body width
b1(mm)
1270
1270
1270/1460
Forks dimensions
s/e/l(mm)
35/100/1070
40/122/1070
40/122/1070
Forks adjustment dimensions
b5(mm)
210-705
244-705
260-840
The min.ground clearance(Wheelbase center)
m2(mm)
70
70
70
Stacking aisle width,pallet1m×1.2m
(1.2m cross forks)
Ast(mm)
2964
3007
3010
The min.turning radius
Wa(mm)
1800
1900
1922
Performance
Travelling speed,unladen/full-loaded
km/h
14/14
14/14
14/14
Lift speed unladen/full-loaded
m/s
0.330/0.245
0.450/0.340
0.450/0.340
Lowerspeed unladen/full-loaded
m/s
0.350/0.380
0.360/0.420
0.360/0.420
The max.gradability,unladen/full-loaded
%
≤10
≤10
≤10
Service brake

Electromagnetic
Motor
Drive motor power
kw
6.5AC
6.5AC
6.5AC
Liftmotorpower
kw
7.5AC
12AC
15AC
Battery type

Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
48/300
48/400
48/400
Charger
V/A
48/40
48/50
48/50
Others
Drive control mode

AC
AC
AC
Noise level at driver's ears according to En12053
dB(A)
75
75
75
Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
