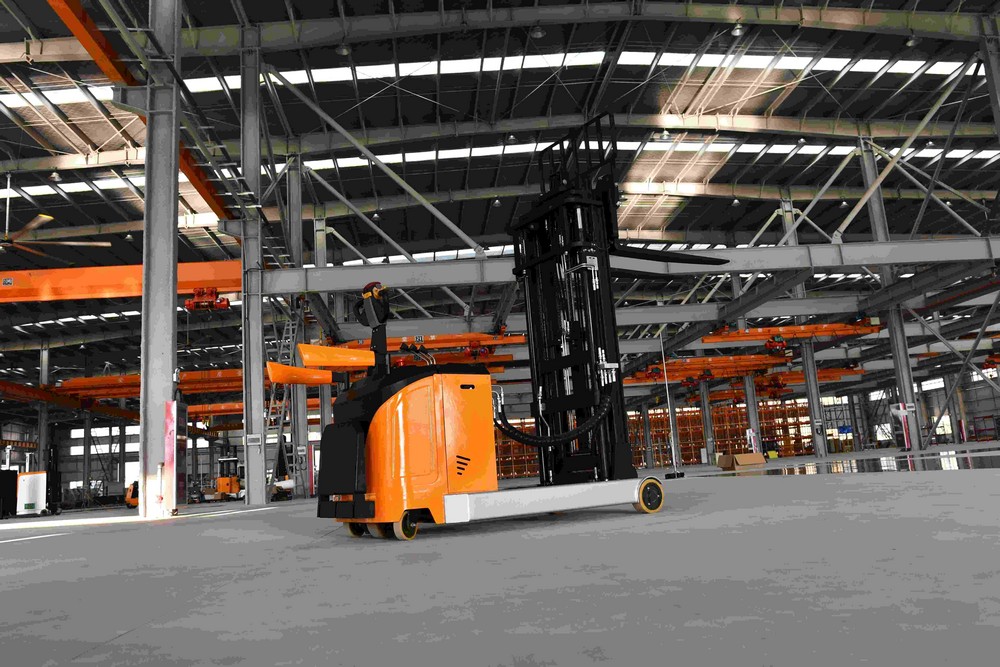

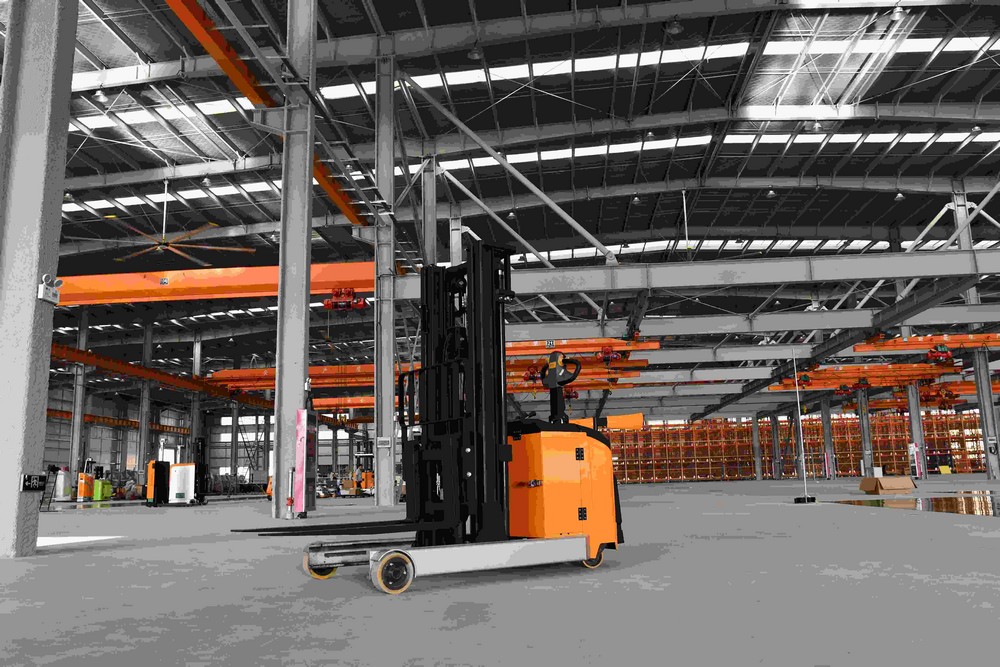

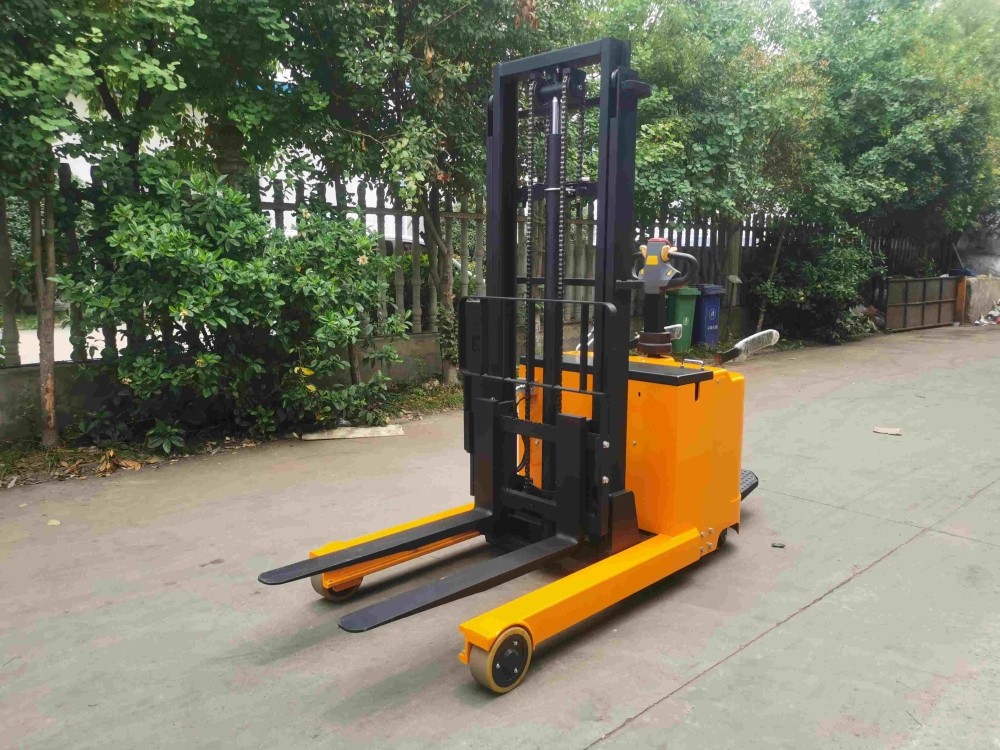

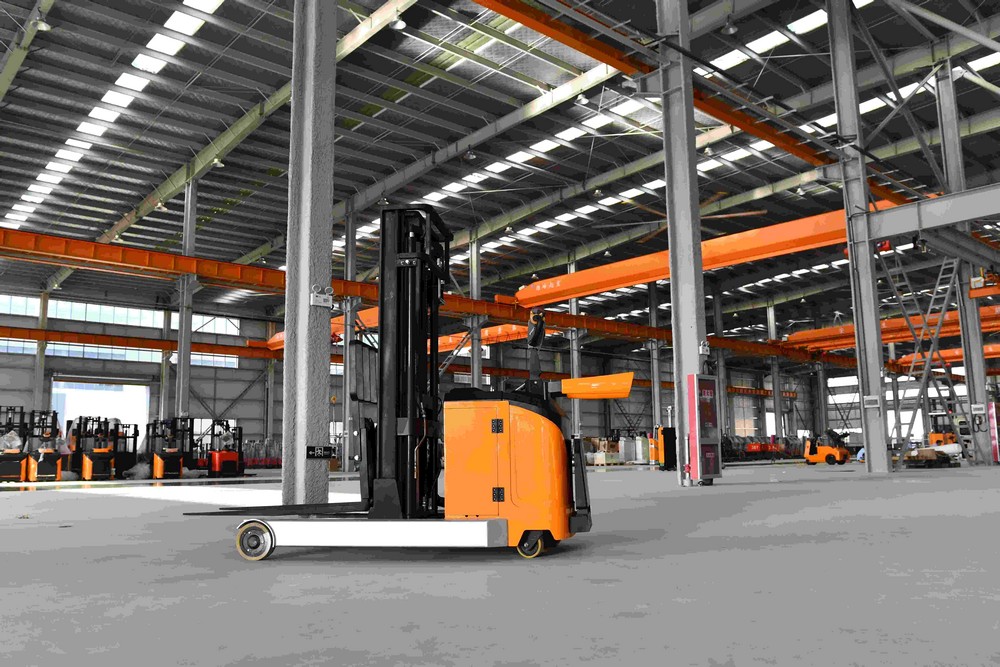

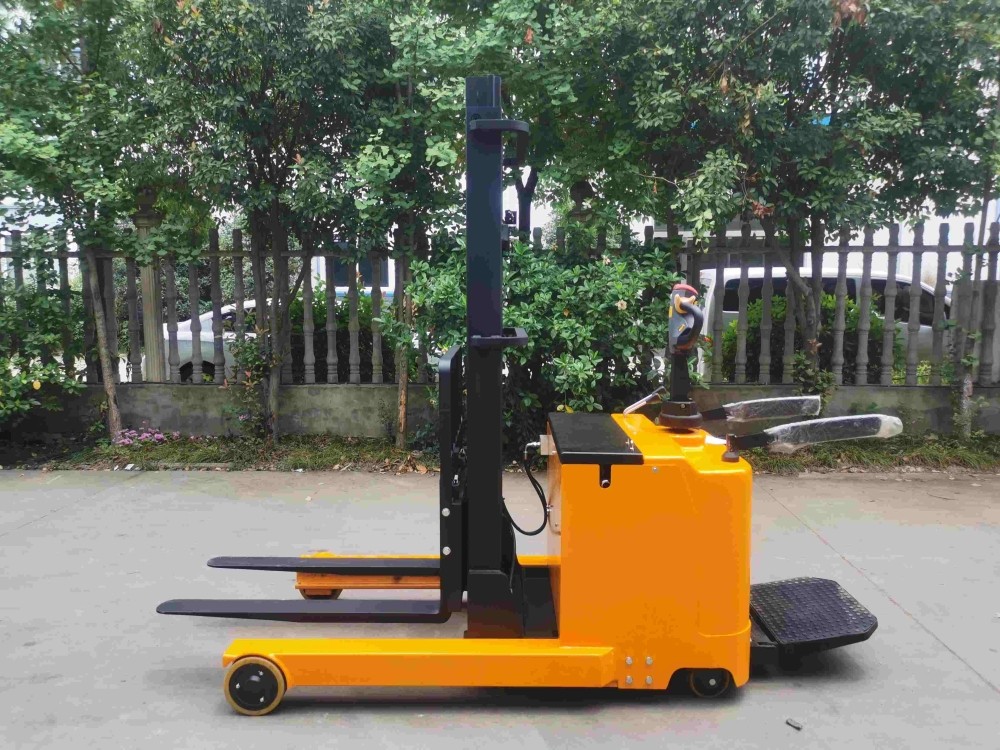

CQDA15-25 electric reach forklift stand type
INQUIRY
  • Description
  • Inquiry

Product Description

1) Compact structure features in more convenient goods accessing in  limited  spaces.  The  mast  moves  forward  as  a  whole, with adjustable forged forks. Suitable for various pallets, small turning radius. Barriers under the bottom of racks can be neglected；

2) Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;

3) Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;

4) AC drive, no carbon brush, maintenance-free, high-efficiency motor, accurate control, strong power.


Characteristic
1.1
Model

CQDA10-25
CQDA15-25
CQDA20-25
1.2
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
1.3
Operation(manual,walkie,side-standing,picker)

Rider type
Ridertype
Ridertype
1.4
Rated load capacity
Q(kg)
1000
1500
2000
1.5
Load center distance
C(mm)
500
500
500
1.6
The front overhang distance
X(mm)
155
155
155
1.7
Wheelbase
Y(mm)
1335
1435
1585
1.8
Forward moving distance
14(mm)
500
600
730
Weight
2.1
Service weight(incl.battery)
kg
1875
1900
2050
Wheel/
Chassis
3.1
Wheel type

PU
PU
PU
3.2
Drive wheelspecification
ø×w(mm)
φ230*75
φ230*75
φ230*75
3.3
Front wheel specification
ø×w(mm)
φ210*85
φ210*85
φ210*85
3.4
Rear Wheel specification
ø×w(mm)
φ150*50
φ150*50
φ150*50
3.5
Tread,front
b10(mm)
945
945
945
3.6
Tread,rear
b11(mm)
735
735
735
Dimensions
4.1
Vehicle height,mast retracted
h1(mm)
1845
1845
1845
4.2
Standard lifting height
h3(mm)
2500
2500
2500
4.3
Mast height,extended
h4(mm)
3470
3470
3470
4.4
Forks height,mast retracted
h13(mm)
35
35
40
4.5
Mast/forks tilting angle (the front/the rear)
a/β(°)
3/5
3/5
3/5
4.6
Vehiclebody length(excl/incl forks with pedal folded)
l1(mm)
1734/2276
1834/2276
1984/2346
4.7
Vehicle length(extra 536mm with pedal,without pedal)
12(mm)
1615
1715
1865
4.8
Vehicle Body Width
b1(mm)
1034
1034
1034
4.9
Forks dimensions
s/e/l(mm)
135/100/1070
35/100/1070
40/122/1070
4.10
Forks adjustment dimensions
b5(mm)
210-680
210-680
245-705
4.11
The min.ground clearance(Wheelbase center)
m2(mm)
70
70
70
4.12
Stacking aislewidth,palletfolded 1m×1.2m(1malong forks)
Ast(mm)
2681
2715
2816
4.13
Stacking aisle width,pallet unfolded1m×1.2m(1m along forks)
Ast(mm)
3083
3116
3220
Peformance
4.14
The min.turning radius(pallets folded/extended)
Wa(mm)
1652/2053
1752/2153
1900/2304
5.1
Travelling speed,unladen/full-loaded
km/h
5/4
5/4
5/4
5.2
Lift speed unladen/full-loaded
m/s
0.112/0.095
0.112/0.092
0.112/0.085
5.3
Lowerspeed unladen/full-loaded
m/s
0.094/0.110
0.094/0.115
0.096/0.123
5.4
Themax.gradability,unladen/full-loaded
%
8/5
8/5
6/4
Motor
5.5
Service brake

Electromagnetic
Electromagnetic
Electromagnetic
6.1
Drive motor power
kw
1.5
1.5
2.5
6.2
Lift motor power
kw
2.2
2.2
2.2
6.3
Battery type

Lead-acid
Lead-acid
Lead-acid
6.4
Battery voltage/capacity
V/Ah
24/210
24/210
24/210
6.5
Charger
V/A
24/30
24/30
24/30
Others
7.1
Drive controlmode

AC
AC
AC
7.2
Noise level at driver's ears according to En12053
dB(A)
75
75
75




Q：What is the MOQ?

A： One set.


Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.


Q:   Can I get spare parts or technical support after purchase?

A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q：How long is the warranty time?

A： 12 months or 2000 hours whichever comes first.


Q：What is the payment terms?

A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
