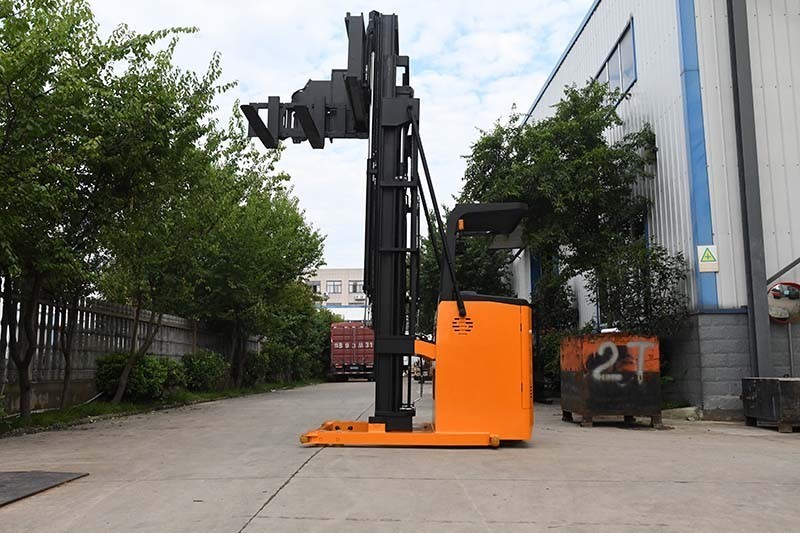

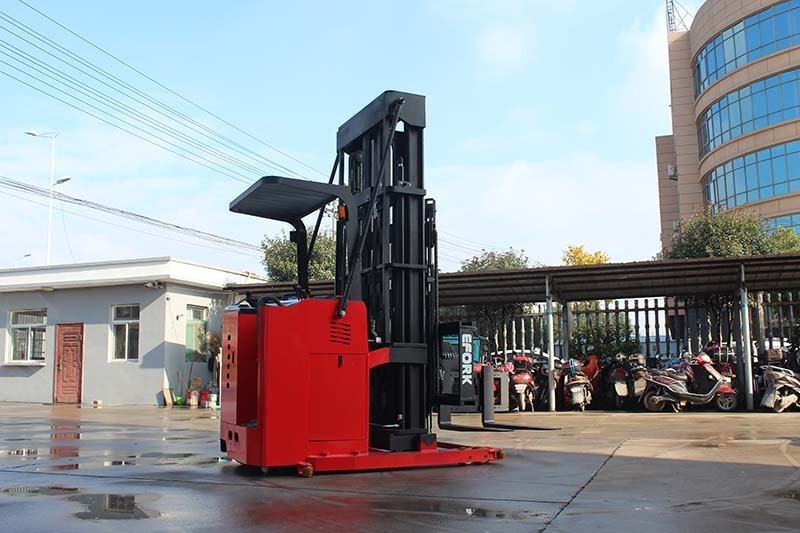

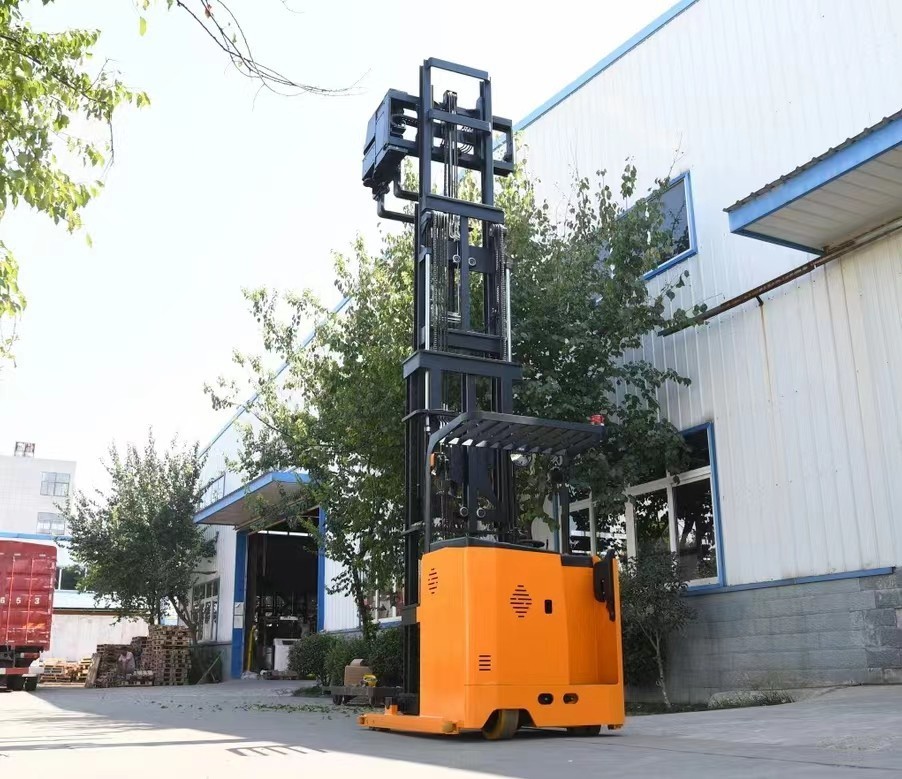

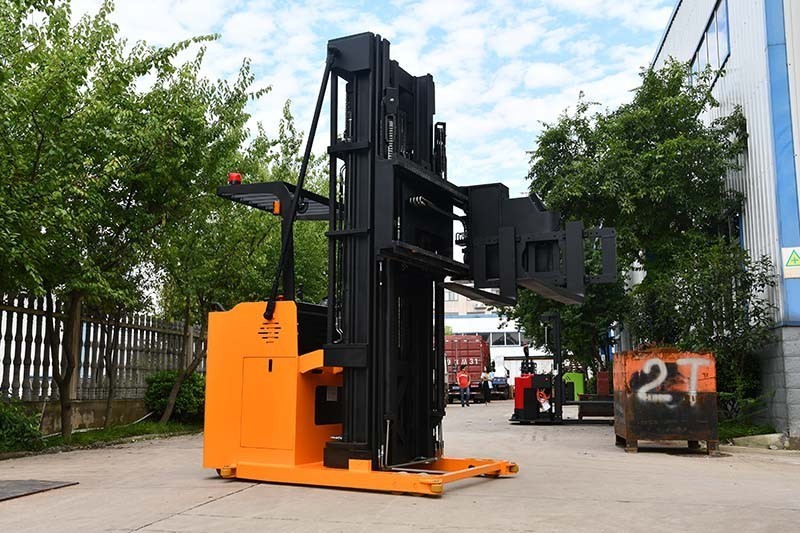

CDDM10-30 3-way electric pallet stacker
INQUIRY
  • Description
  • Inquiry

Product Description

Without turning the vehicle body, three-way pallet stacker series can access goods in rotation, to left, right to load or unload the goods; Intensive storage，optimal to enlarge the warehouse capacity. The min. aisle width is only 1500mm. Outstanding performance of sorting, material handling, stacking in narrow aisles. It saves the space and enlarges the warehouse capacity greatly;

Guide rail wheel appliance achieves steering control automation, allowing vehicle to smoothly pass even the narrowest aisles;

Equipped with branded control system and multi-functional protection system, it offers a higher level fuctional safety;

Equipped with high-strength German Krupp steel mast, not easy to deform, steady operate. Optimized mast reduces the lifting and lowering viberation to offer a great operation comfort;

Equipped with camera, electronic display, timing, fault display and excellent digit transmission LED, it shows real-time vehicle operat-  ion status for troubleshooting and maintenance conveniently;

Customized electromagnetic navigation/laser navigation AGV.

Model
CDDM10-60S
CDDM12-60S
CDDM15-60S
CDDM16-60S
Power
Electric
Operation
Side-standing
Rated load
Q(kg)
1000
1200
1500
1600
Load centerdistance
C(mm)
500
500
600
600
Service weight(incl.battery)
kg
5100
5200
6300
6500
Wheel type
PU
PU
PU
PU
Drivewheel specifications
×w(mm)
Ф382*142
The front wheelspecification
Xw(mm)
φ145*100
φ145*100
φ145*100
φ145*100
The balance wheel specification
×w(mm)
φ180*76
φ180*76
φ180*76
φ180*76
Tread,front
b10(mm)
1210
1210
1305
1305
Mast height,lowered
h1(mm)
3400
3400
3400
3400
Free lifting height
h2(mm)
2235
2235
2235
2235
Lift height
h3(mm)
6000
6000
6000
6000
Mastheight,extended
h4(mm)
7125
7125
7125
7125
Overhead guard height
h14(mm)
2260/2300
Length(forks rotate on both left and right sides)
l2(mm)
3045
3045
3065
3065
Vehicle width
b1(mm)
1455
1455
1550
1550
Anti-collision guardrail width
(mm)
1500
1500
1600
1600
Forks dimensions
s/e/l(mm)
40/122/1070
45/125/1200
Forks adjustment dimensions
b5(mm)
260-650 (Customized)
The min.ground clearance (wheelbase center)
m2(mm)
32
32
32
32
Stacking aisle width
Ast(mm)
1500(1000*1000pallet)
1600(1200*1200pallet)
Aisle guide rail width
(mm)
120
120
120
120
The min.tuning radius
Wa(mm)
1985
1985
1985
1985
The main aisle width
3270+400
3270+400
3470+400
3470+400
The max. travelling speed,unladen/full-loaded
km/h
8/7
8/7
8/7
8/7
Lift speed,unladen/full-loaded
0.30/0.26
0.30/0.26
0.30/0.26
0.30/0.26
Lowerspeed,unladen/full-loaded
0.30/0.32
0.30/0.32
0.36/0.39
0.36/0.39
Service brake
Electromagnetic
Drive motor power
6.5AC
6.5AC
6.5AC
6.5AC
Lift motor power
15AC
15AC
15AC
15AC
Battery type
Lead-acid
Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
48/400
48/400
48/400
48/400
Motor
V/A
48/50
48/50
48/50
48/50
Drive control mode
AC
AC
AC
AC
