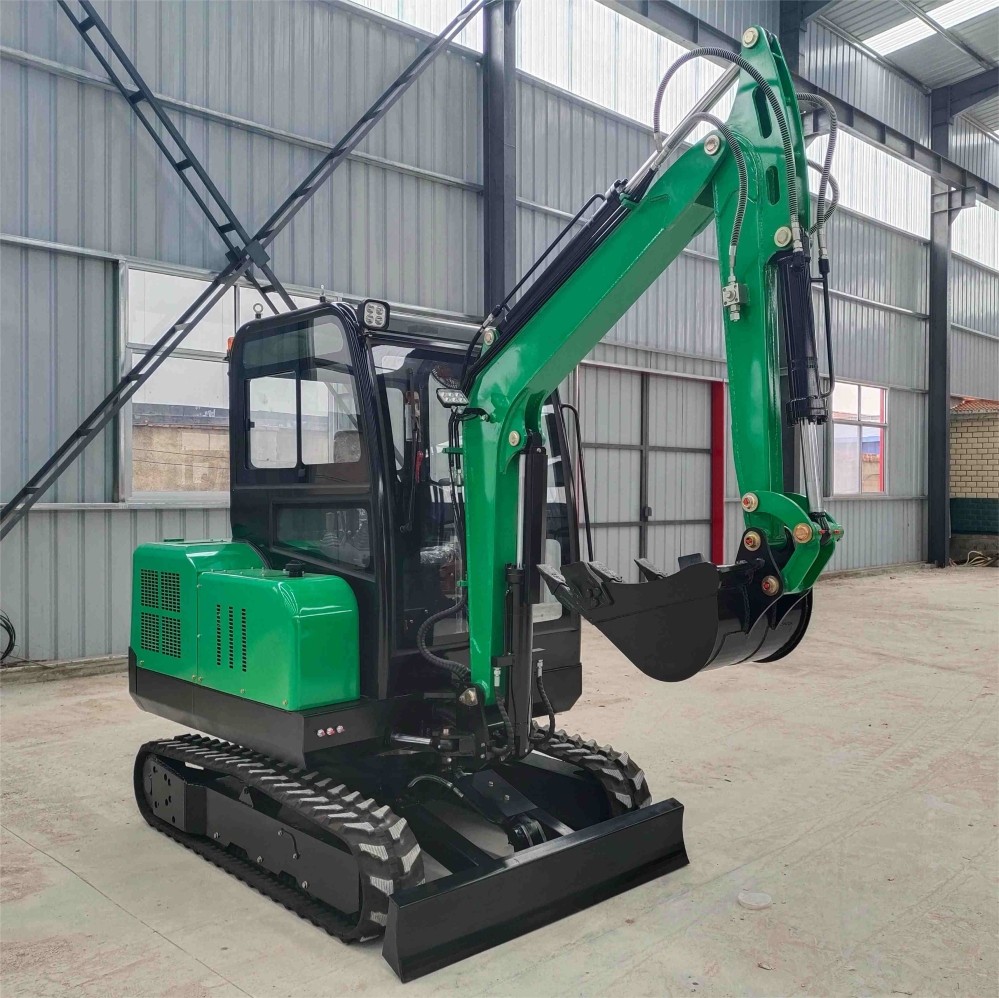

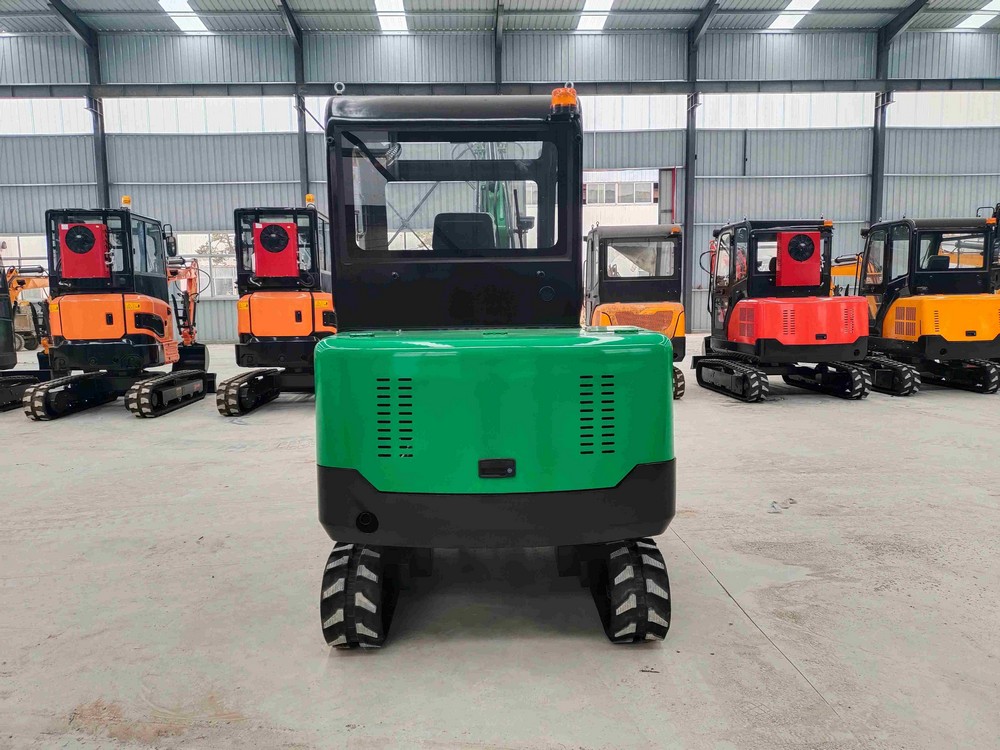

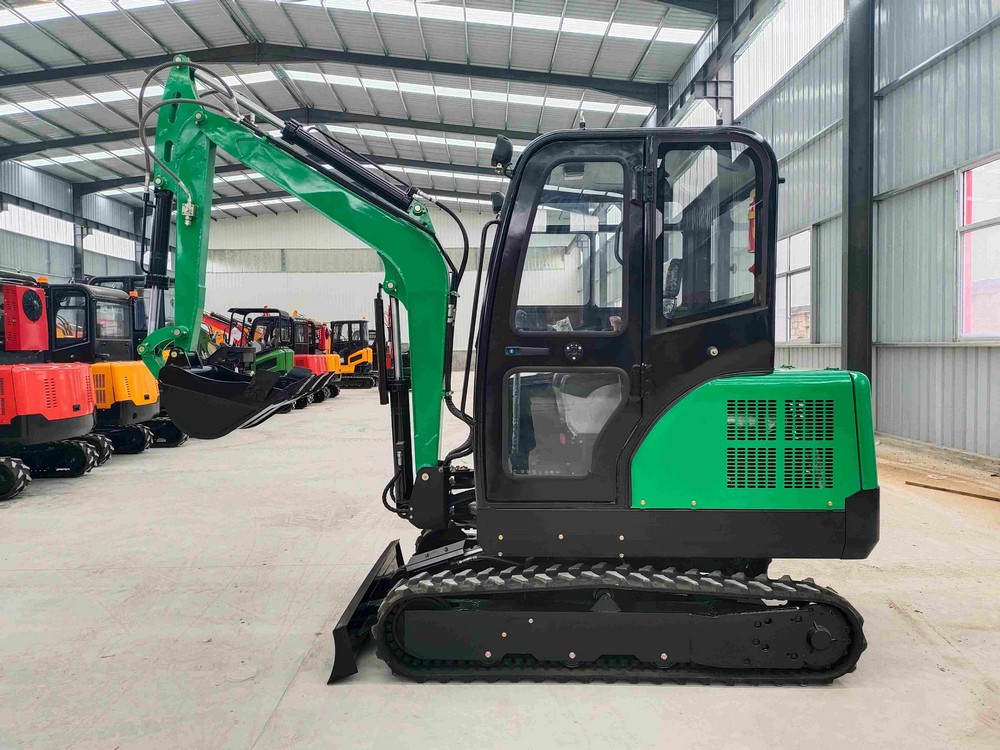

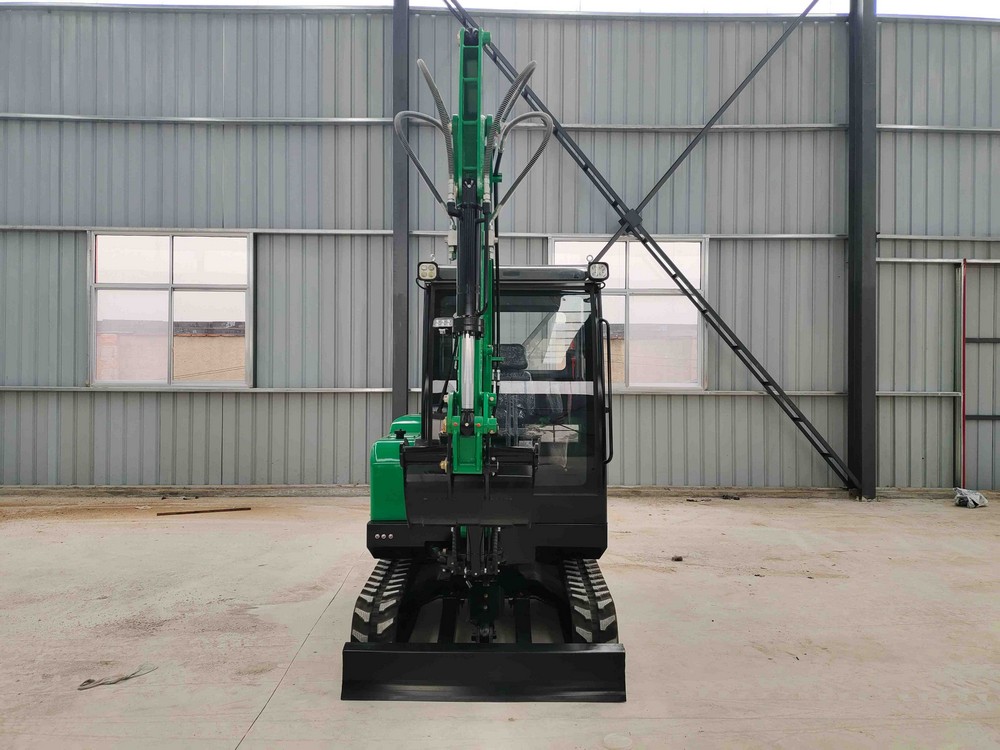

Based on a mature medium-sized excavator platform, it is equipped with a new load-sensing hydraulic system, engine and electronic control system. It integrates energy-saving, reliability and comfort.
SPECIFICATION
Operation Weightt
3ton
Engine Brand
Changcai 390
Rated Power
20kw
Digging Bucket Capacity m³
0.1
Bucket Width
580mm
Traveling Motor
Danfoss
Travel Speed km/h
2.7km/h
Swing Motor
Danfoss
Swing Speed
10r/min
Hydraulic system
Plunger pump:力克川/北方多路阀
Body Swing Radius
1326
Body Swing Angel
360
Boom Swing Angel(L/R)
55/45
Max. Grade Ability
35
MAIN DIMENSIONS
Overall Length
4180
Overall Width
1350
Overall Height
2250
Track Width
230
Track Length
2100
Body Width
1350
Max. Digging Radius mm
4040
Max Digging Depth mm
2500
Max. Digging Height mm
3900
Max. Unloading Height mm
2600
Min. Swing Radius mm
2211
Max. Digging Depth Of Dozer Blade mm
190
Max. Lifting Height Of Dozer Blade mm
350
FAQ
Q:What is theMOQ? A: One set.
Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase? A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q:How long is the warranty time? A: 12 months or 2000 hours whichever comes first.
Q:What is the payment terms? A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
