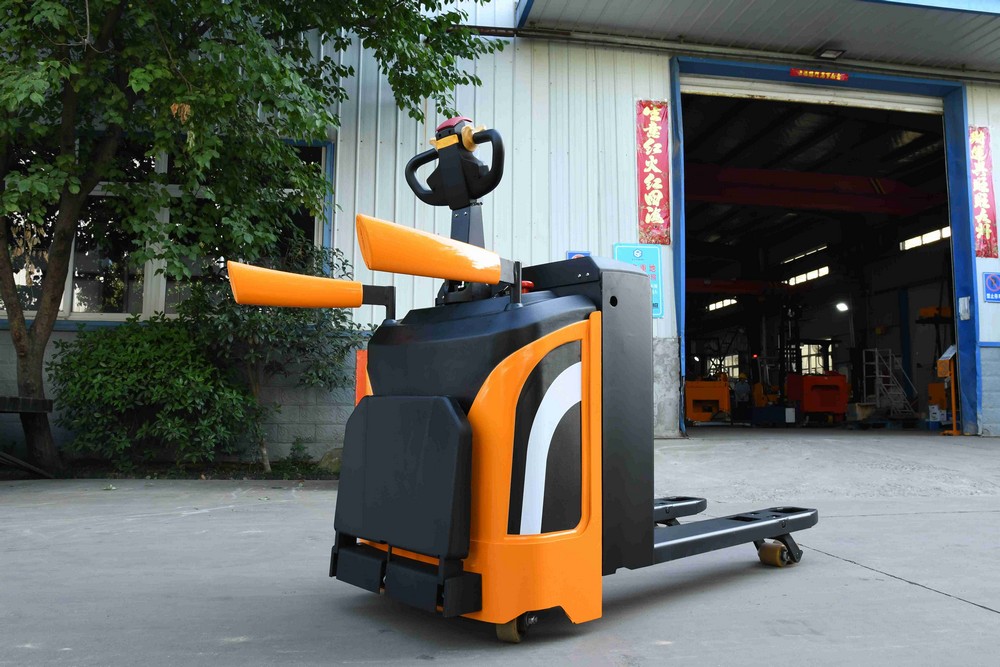

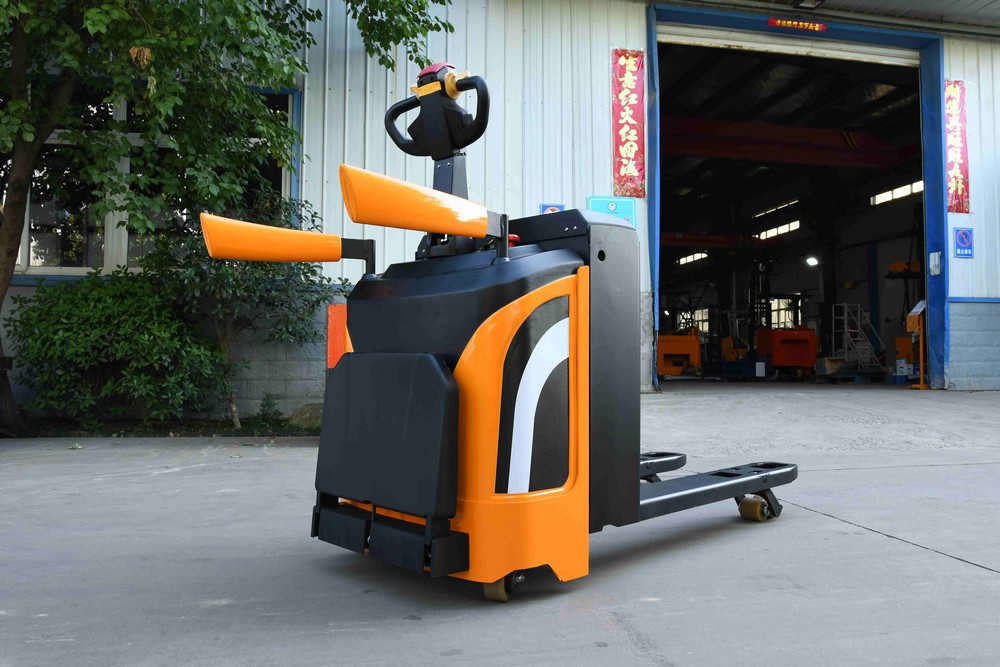

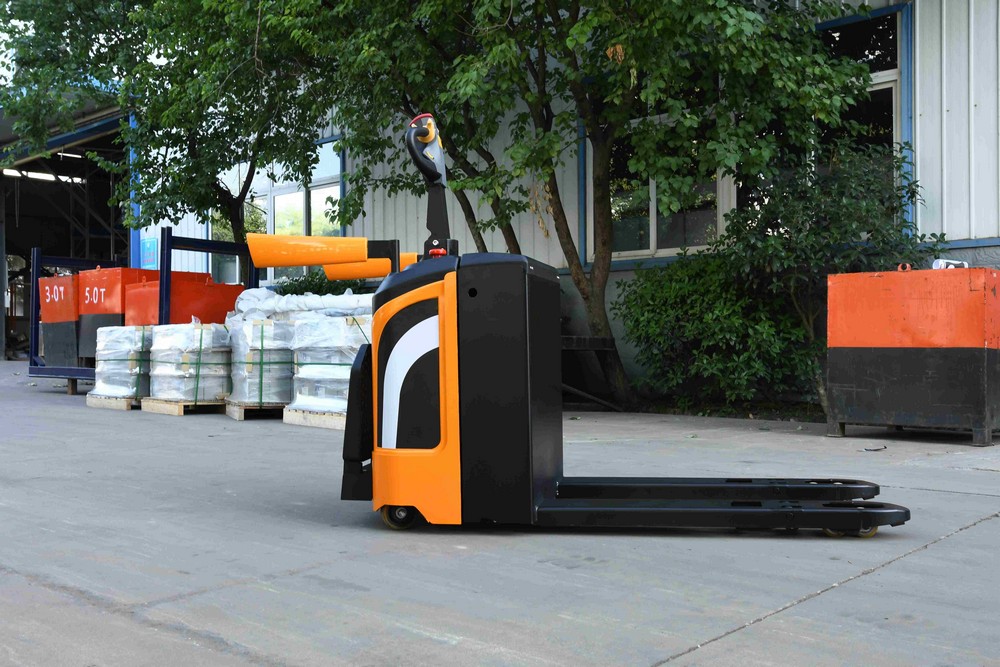

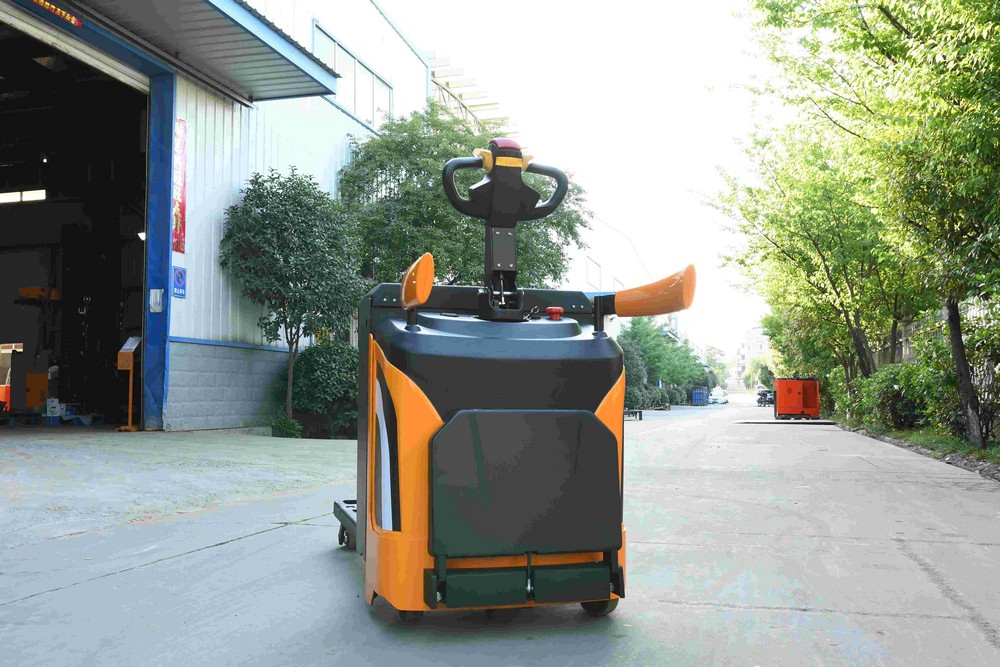

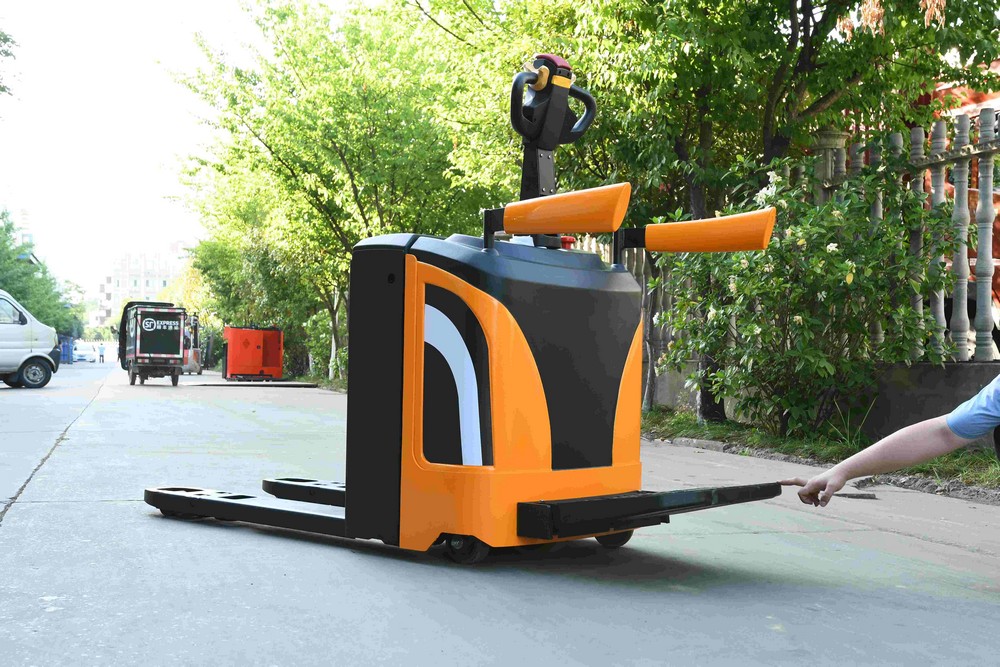

CBD20III electric pallet truck rider type
INQUIRY
  • Description
  • Inquiry

Product Description

1) The branded control system features multiple automatic protection systems, providing a higher level of functional safety.

2) The vertical branded gearbox, with its multi-functional solutions and flexible modular system, utilizes optimized gear technology to reduce operating noise, providing customers with a high-performance and highly efficient user experience.

3) Equipped with a full AC drive system, it boasts features such as compact size, light weight, high efficiency, and maintenance-free operation, eliminating the hassle of replacing carbon brushes in DC motors and requiring no further maintenance or upkeep.


Model

CBD20II
CBD25ⅢI
CBD30III
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
Operation(manual,walkie,side-standing,picker)

Ridertype
Ridertype
Ridertype
Steering way

EPS
EPS
EPS
Rated load capacity
Q(kg)
2000
2500
3000
Load center distance
C(mm)
600
600
600
Wheelbase
Y(mm)
1380
1380
1380
Service weight(incl.battery)
kg
710
730
750
Wheeltype(The front/rear)

PU
PU
PU
Front wheelspecification
ø×w(mm)
φ80*80
φ80*80
φ80*80
The rearwheel specification
ø×w(mm)
φ230*75
φ230*75
φ230*75
Balance Wheel specification
ø×w(mm)
φ125*50
φ125*50
φ125*50
Mast height,extended
H(mm)
205
205
205
Forks surface height from the ground when lowering
H1(mm)
85
85
85
Forks outer width
S1(mm)
685/540
685/540
685/540
Vehicle length(pedal folded/unfolded)
L(mm)
1825/2240
1825/2240
1825/2240
Vehicle width
S(mm)
760
760
760
Forks dimensions
s/e/l(mm)
55/175/1150
55/175/1150
55/175/1150
Stacking aisle width,pallet 1m×1.2m
(1.0m cross forks)(pedal folded/unfolded)
Ast(mm)
2220/2620
2220/2620
2220/2620

Load bearing distance
X(mm)
970
970
970
The min.turning radius
Wa(mm)
1670/2070
1670/2070
1670/2070
Travelling speed,unladen/full-loaded
km/h
6/5.5
6/5.5
6/5
Lift speed unladen/full-loaded
m/s
0.043/0.040
0.043/0.040
0.043/0.040
Lower speed unladen/full-loaded
m/s
0.035/0.445
0.035/0.445
0.035/0.445
The max.gradability,unladen/full-loaded
%
10/8
10/8
10/6
Service brake

Electromagnetic
Electromagnetic
Electromagnetic
Drive motor power
kw
1.5
1.5
1.5
Lift motor power
kw
0.8
0.8
0.8
Batterytype

Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
24/210
24/210
24/210
Charger
V/A
24/30
24/30
24/30
Drive control mode

AC
AC
AC
Noise level at driver's ears according to En12053
dB(A)
75
75
75


Q：What is the MOQ?

A： One set.


Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.


Q:   Can I get spare parts or technical support after purchase?

A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q：How long is the warranty time?

A： 12 months or 2000 hours whichever comes first.


Q：What is the payment terms?

A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
